FZ-CP IP69-K
Centrifugal Pump IP69-K
Washdown-rated sanitary AISI 316L centrifugal pump
Rev. 2025 · Curves at n ~ 2900 rpm · 50 Hz

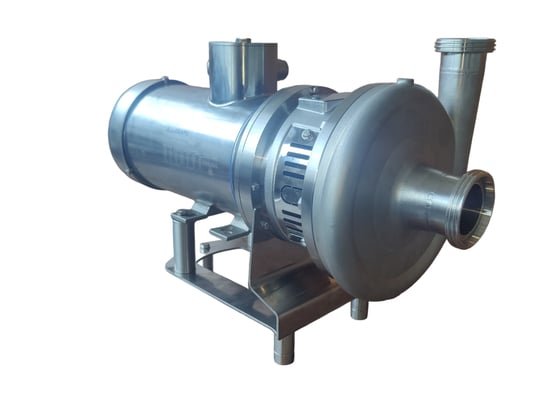

FZ-CP centrifugal pump with an IP69-K motor rated for high-pressure and steam washdown — for the most demanding hygienic environments. Same 316L hydraulic build, in the highest ingress-protection class.
Applications
Key features
- IP69-K motor — high-pressure & steam washdown
- Highest ingress protection class
- 316L wetted parts · DIN 11851 connections
- Gentle, hygienic transfer
- Wide range — 0.55 to 4.0 kW
Range coverage Q–H · 50 Hz
Range — 7 power classes (50 Hz)
| Class | Power kW | HP | Impeller Ø (mm) | Max head (m) | Max flow (m³/h) | Configs |
|---|---|---|---|---|---|---|
| FZ-CP05 | 0.55 | 0.75 | 105 – 115 | 14 | 2.7 | 3 |
| FZ-CP07 | 0.75 | 1 | 105 – 125 | 17 | 3.6 | 5 |
| FZ-CP11 | 1.1 | 1.5 | 105 – 145 | 25 | 2.7 | 9 |
| FZ-CP15 | 1.5 | 2 | 115 – 160 | 32 | 3.6 | 10 |
| FZ-CP22 | 2.2 | 3 | 130 – 175 | 38 | 2.7 | 10 |
| FZ-CP30 | 3 | 4 | 135 – 180 | 43 | 4.5 | 10 |
| FZ-CP40 | 4 | 5.5 | 155 – 180 | 45 | 13.5 | 6 |
Range coverage: flow up to 36 m³/h · head up to 45 m. Flow ~10% lower than the standard FZ-CP (IP69-K configuration). The exact Q–H curve of each of the 53 configurations is available in our online pump selector or on request. Data for indicative purposes only — test results with fresh water at room temperature.
Technical data
| Type | IP69-K sanitary centrifugal pump |
| Product-contact material | AISI 316L stainless steel |
| Power range | 0.55 – 4.0 kW (0.75 – 5.5 HP) |
| Speed | ~ 2900 rpm (2-pole) |
| Impeller diameter | 105 – 180 mm |
| Power supply | 400 V · 3-ph · 50 Hz / 60 Hz |
| Motor protection | IP69-K — high-pressure / steam washdown |
| Hygienic connections | DIN 11851 (standard, IT) · Tri-Clamp, SMS, flanges & others on request |
| Mechanical seal | Selected to suit fluid & temperature |
| Compliance | CE · Made in Italy |
Dimensions
Overall dimensions in mm. Indicative, not binding.
FZ INOX Srl · Via dell'Industria, 9 · 36016 Thiene (VI) · Italy · export@fzinox.com · +39 0445 1716306 · fzinox.com · VAT IT03872070242
CESpecifications subject to change without notice.
