Robust, stainless-steel built for a long service life in demanding conditions — engineered for operational efficiency and high output.
Ideal for clean liquids or liquids with fine solid particles: a perfect fit for food, dairy and beverage lines where reliability and hygiene are essential, with simplified maintenance and lower running costs.
Built to measure — every unit is sized to your duty point.
Construction
Stainless steel — AISI 316L on all product-contact parts
Range
0.55 – 7.5 kW · 9 power classes, 57 configurations
Speed
≈ 2900 rpm (2-pole)
Coverage
Flow up to 48 m³/h · head up to 45 m
Motor protection
IP55 · IP69-K version available
Power supply
400 V · 3-phase · 50 Hz / 60 Hz
Hygienic connections
DIN 11851 standard (IT) — Tri-Clamp, SMS, flanges & other connections on request
Mechanical seal
Selected to suit your fluid and its operating temperature
Impeller
Open, without front shroud
Maximum discharge pressure
4.5 bar at 50 Hz
Gaskets
EPDM
Compliance
CE marked · Made in Italy
✓ AISI 316L on product-contact parts
✓ Polished finish for hygiene
💬 You talk to the people who build it
📦 We ship across Europe & beyond
How it works
From suction to discharge, in three steps.
The liquid enters through the suction port, in the centre of the pump casing, and meets the impeller. The impeller turns with the electric motor shaft at about 2900 rpm (3500 at 60 Hz) and centrifugal force throws the liquid towards its outer edge.
There the casing collects the liquid and turns its velocity into pressure: the liquid leaves through the discharge port, which points upwards.
Flow and head depend on the impeller and on the speed. That is why the pump is chosen on the H–Q curve: you tell us the flow and head you need and we pick, among 57 configurations, the one that works best at your duty point.
Design and materials
What is inside an FZ-CP.

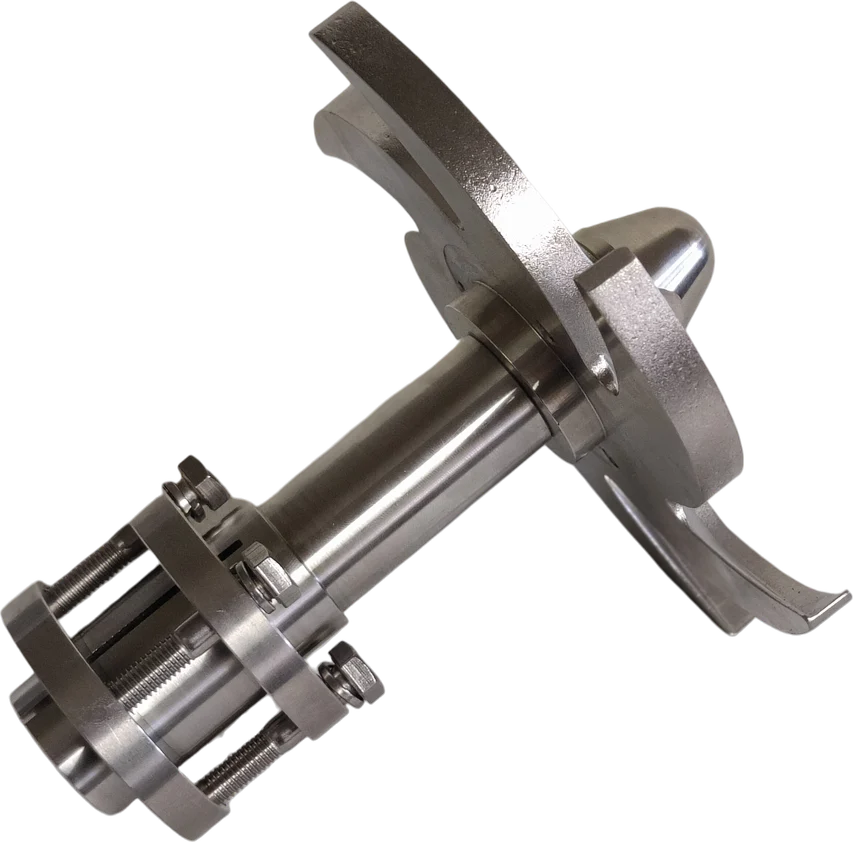

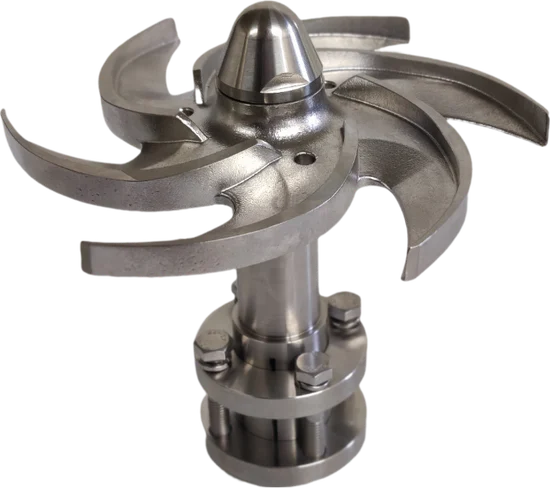

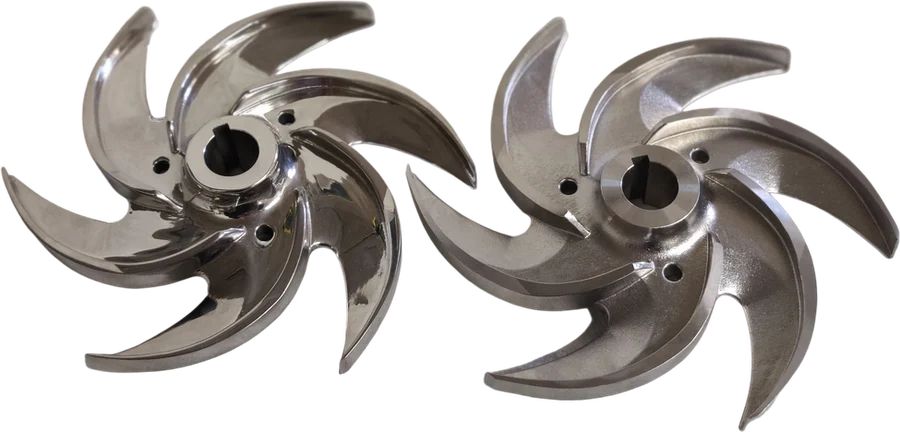

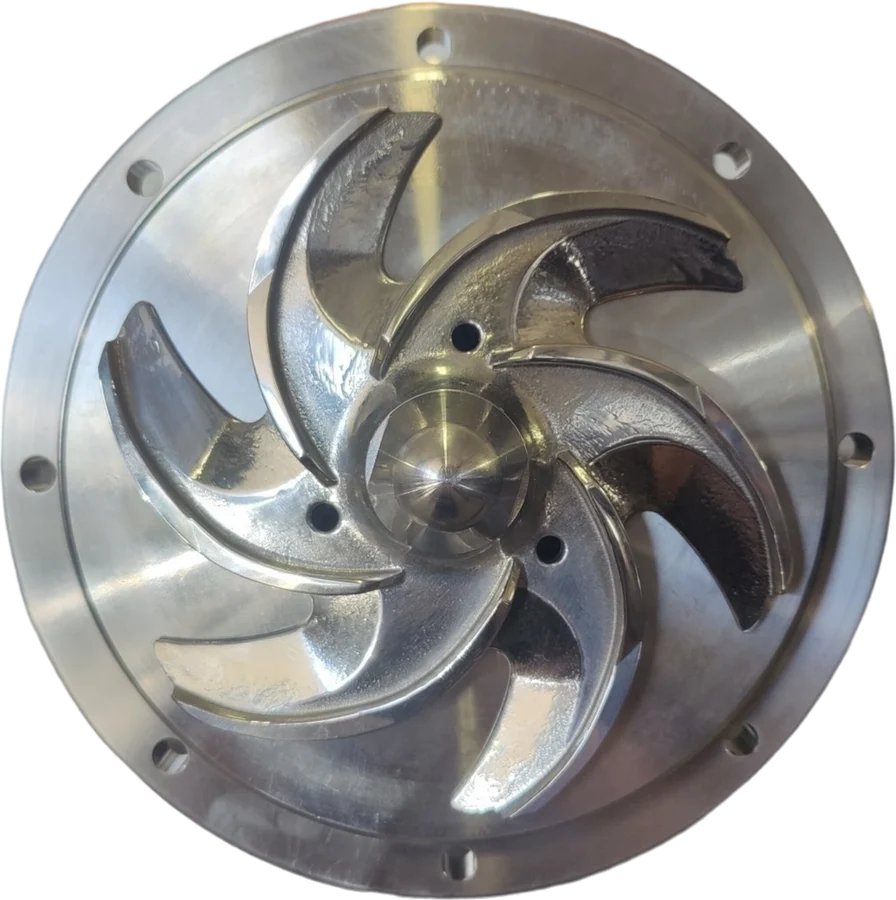

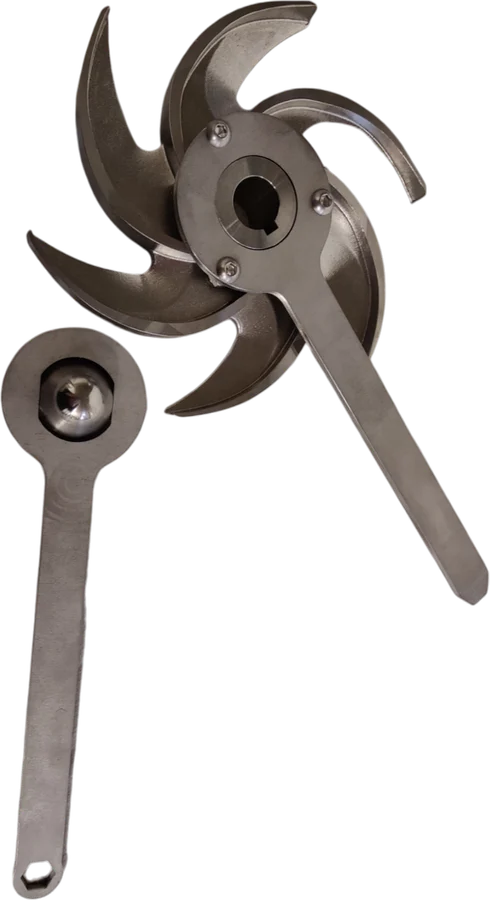

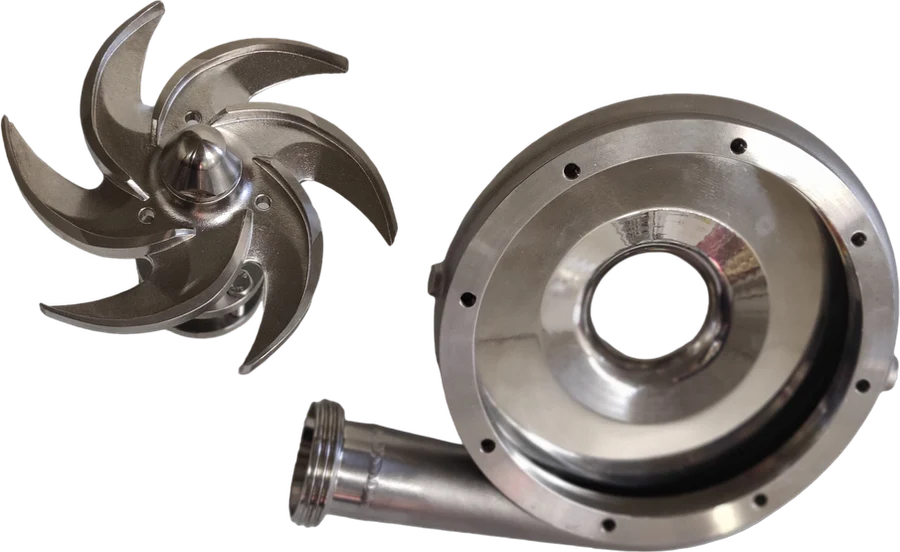

Open impeller
The vanes have no front shroud: the passages stay wide, liquids with fine solid particles go through without clogging, and impeller and casing are easy to clean and inspect.
4.5 bar maximum discharge pressure
At 50 Hz, with the largest models at zero flow: with water that is about 45 m of head. Each model has its own, in the “Performance by model” table.
EPDM gaskets
An elastomer widely used in the food industry: it stands up well to hot water and to CIP cleaning detergents.
AISI 316L wetted parts
Every part in contact with the product is AISI 316L with a polished finish; the motor shroud is AISI 316.

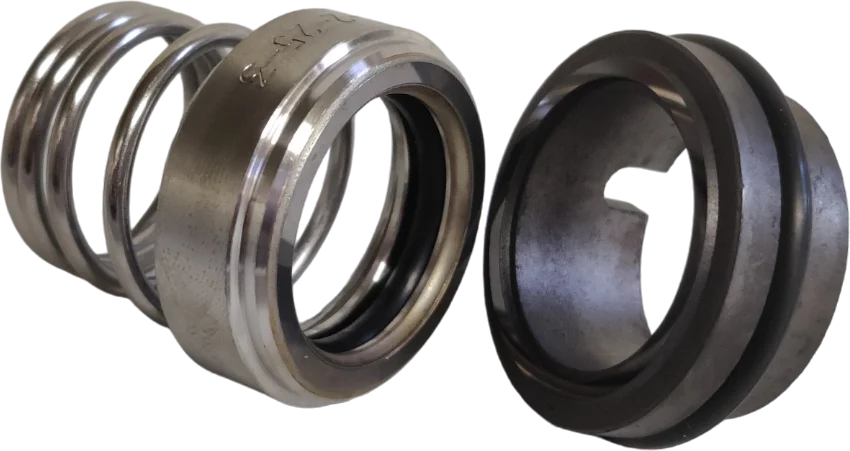

Mechanical seal to suit
We choose it for your fluid and its operating temperature. If the seal needs continuous flushing or cooling, there is the flushed version, FZ-CP FLUX.
IP55 or IP69-K motor
Three-phase 400 V motor, 50 or 60 Hz, IP55 as standard. For areas washed down at high pressure there is the FZ-CP IP69-K.
Models & dimensions
By electric-motor output. Indicative dimensions, not binding.
0.55 – 2.2 kW
FZ-CP05 Output 0.55 kW
FZ-CP07 Output 0.75 kW
FZ-CP11 Output 1.1 kW
FZ-CP15 Output 1.5 kW
FZ-CP22 Output 2.2 kW
3.0 – 7.5 kW
FZ-CP30 Output 3.0 kW
FZ-CP40 Output 4.0 kW
FZ-CP55 Output 5.5 kW
FZ-CP75 Output 7.5 kW
Built under your name
The nameplate can be yours
Every FZ-CP leaves the workshop with a stainless steel nameplate: model, serial number, power, speed, flow and pressure — readable for the whole life of the pump.
✎
Your logo and your addressOn request we engrave the nameplate with your own logo and address: the pump reaches the plant under your name.
↗
The curve of the pump you orderAsk us for the performance curve of your exact configuration — here is a sample sheet.👁 View the sample curve
Interactive tool — flow over 45m³/h, pressure over 45m: browse the real H–Q curves and find the right model for your duty point.
Performance by model
Values at 50 Hz and 2900 rpm, read from the H–Q curves above: maximum flow and maximum head, that is at zero flow.
Model
Power
Impellers Ø
Max flow
Max head
FZ-CP05
0.55 kW
105–115 mm
7 m³/h
14 m
FZ-CP07
0.75 kW
105–125 mm
12 m³/h
17 m
FZ-CP11
1.1 kW
105–145 mm
18 m³/h
25 m
FZ-CP15
1.5 kW
115–160 mm
25 m³/h
32 m
FZ-CP22
2.2 kW
130–175 mm
35 m³/h
38 m
FZ-CP30
3 kW
135–180 mm
40 m³/h
43 m
FZ-CP40
4 kW
155–180 mm
40 m³/h
45 m
FZ-CP55
5.5 kW
170–180 mm
48 m³/h
45 m
FZ-CP75
7.5 kW
180 mm
48 m³/h
45 m
Hygienic connections
Every unit is fitted with the coupling your line uses. DIN 11851 is our standard — the rest are available on request, so the pump drops straight into your existing plant.
Standard
DIN 11851
Threaded hygienic union — the food-industry standard in Italy and much of the EU.
On request
Tri-Clamp
Clamp connection with quick release — fast to open for inspection and cleaning.
On request
SMS 3008
Swedish dairy union — common on international dairy and beverage lines.
On request
Flange & others
Bolted flanges, IDF/RJT, and other hygienic couplings to match your plant.
Your standard?
Tell us which standard your line uses — we build the pump to match.
Details & components
Tap any image to enlarge.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Frequently asked questions
The answers we are asked most often. Not here? Write to us.
Are the FZ-CP pumps available at 60 Hz?
Yes. The whole FZ-CP range is tested and curved at both 50 Hz (2900 rpm) and 60 Hz (3500 rpm) — you will find both in the performance-curve tool, under the "50 vs 60 Hz" tab.
Which materials are in contact with the product?
AISI 316L on every product-contact part, with a polished finish for hygiene. The motor housing is AISI 316. Gaskets are EPDM.
Which mechanical seal do you fit?
The mechanical seal is selected to suit your fluid and its operating temperature — it is not a fixed choice, we define it together with you.
Which impeller does it use?
An open impeller: the vanes have no front shroud, so the passages stay wide, liquids with fine solid particles go through without clogging, and the pump is easy to clean and inspect.
What is the maximum discharge pressure?
4.5 bar at 50 Hz, with the largest models at zero flow: with water that is about 45 m of head. Smaller models reach less: the head of each model is in the “Performance by model” table and on the curves.
Which hygienic connections can I have?
DIN 11851 as standard (Italy). On request Tri-Clamp, SMS, flanges and other hygienic connections, to match your existing plant.
Is there a washdown version for high-pressure cleaning?
Yes — the IP69-K version, with a motor rated for high-pressure and high-temperature washdown environments.
Do you build pumps to measure?
Yes. Every unit is sized on your duty point — flow and head — send us your data and we build it around it.
What certifications do you have?
CE marking and Made in Italy — designed and built entirely in our Thiene (VI) workshop.
