Products / FZ-CP IP69-K Centrifugal pump IP69-K
FZ-CP IP69-K · Food-grade stainless steel

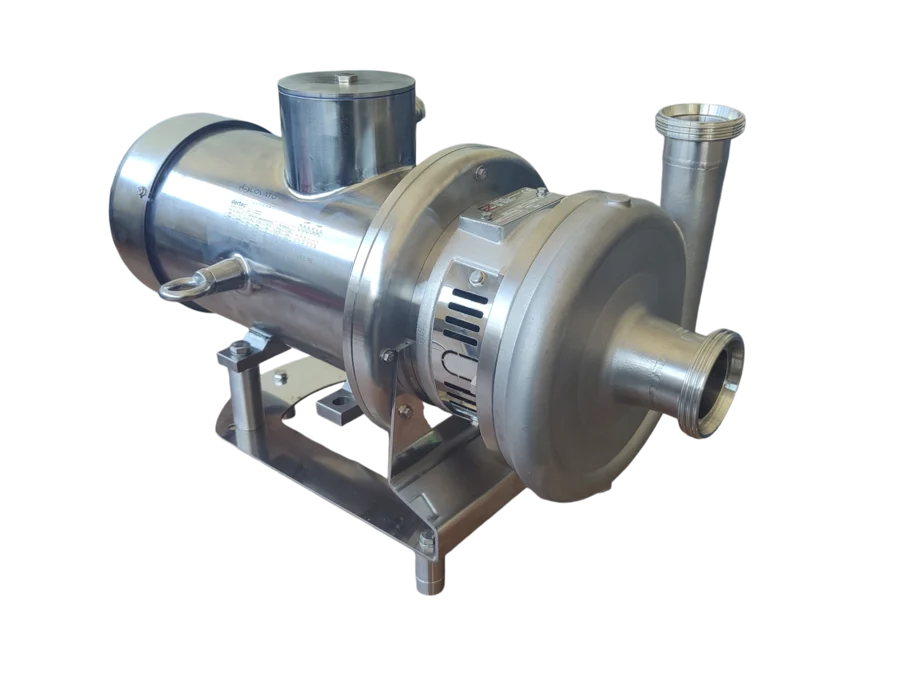

Centrifugal pump IP69-K
Sealed for the harshest washdowns.
The FZ-CP centrifugal pump with IP69-K motor is engineered for maximum protection against dust and high-pressure, high-temperature water jets — ideal for hygienic environments and demanding washdown applications.
Built in food-grade stainless steel, it supports CIP and SIP cleaning and combines hygiene, reliability and energy efficiency.
Technical guideHow to read the curve and choose the pump
Technical specifications
Washdown-rated version of the FZ-CP centrifugal pump.
Construction
Stainless steel — AISI 316L on all product-contact parts
Motor protection
IP69-K — high-pressure / steam washdown
Range
0.55 – 4.0 kW · 7 power classes
Coverage
Flow up to 36 m³/h · head up to 45 m
Power supply
400 V · 3-phase · 50 Hz / 60 Hz
Hygienic connections
DIN 11851 standard (IT) — Tri-Clamp, SMS, flanges & other connections on request
Mechanical seal
Selected to suit your fluid and its operating temperature
Impeller
Open, without front shroud
Maximum discharge pressure
4.5 bar at 50 Hz
Gaskets
EPDM
Compliance
CE marked · Made in Italy
✓ AISI 316L on product-contact parts
✓ Polished finish for hygiene
💬 You talk to the people who build it
📦 We ship across Europe & beyond
Models & dimensions
Indicative dimensions, not binding.
0.55 – 2.2 kW
- FZ-CP05 IP69-K 0.55 kW
- FZ-CP07 IP69-K 0.75 kW
- FZ-CP11 IP69-K 1.1 kW
- FZ-CP15 IP69-K 1.5 kW
- FZ-CP22 IP69-K 2.2 kW
3.0 – 4.0 kW
- FZ-CP30 IP69-K 3.0 kW
- FZ-CP40 IP69-K 4.0 kW
Built under your name
The nameplate can be yours
Every FZ-CP leaves the workshop with a stainless steel nameplate: model, serial number, power, speed, flow and pressure — readable for the whole life of the pump.
- Your logo and your addressOn request we engrave the nameplate with your own logo and address: the pump reaches the plant under your name.
- The curve of the pump you orderAsk us for the performance curve of your exact configuration — here is a sample sheet.👁 View the sample curve
Performance curves
Interactive tool — flow up to 36 m³/h, pressure up to 45 m: browse the real H–Q curves and find the right model for your duty point.
Performance by model
Values at 50 Hz and 2900 rpm, read from the H–Q curves above: maximum flow and maximum head, that is at zero flow.
| Model | Power | Impellers Ø | Max flow | Max head |
|---|---|---|---|---|
| FZ-CP05 IP69-K | 0.55 kW | 105–115 mm | 6.3 m³/h | 14 m |
| FZ-CP07 IP69-K | 0.75 kW | 105–125 mm | 10.8 m³/h | 17 m |
| FZ-CP11 IP69-K | 1.1 kW | 105–145 mm | 16.2 m³/h | 25 m |
| FZ-CP15 IP69-K | 1.5 kW | 115–160 mm | 22.5 m³/h | 32 m |
| FZ-CP22 IP69-K | 2.2 kW | 130–175 mm | 31.5 m³/h | 38 m |
| FZ-CP30 IP69-K | 3 kW | 135–180 mm | 36 m³/h | 43 m |
| FZ-CP40 IP69-K | 4 kW | 155–180 mm | 36 m³/h | 45 m |
Hygienic connections
Every unit is fitted with the coupling your line uses. DIN 11851 is our standard — the rest are available on request, so the pump drops straight into your existing plant.
Standard
DIN 11851
Threaded hygienic union — the food-industry standard in Italy and much of the EU.
On request
Tri-Clamp
Clamp connection with quick release — fast to open for inspection and cleaning.
On request
SMS 3008
Swedish dairy union — common on international dairy and beverage lines.
On request
Flange & others
Bolted flanges, IDF/RJT, and other hygienic couplings to match your plant.
Your standard?
Tell us which standard your line uses — we build the pump to match.
Every component, in plain sight

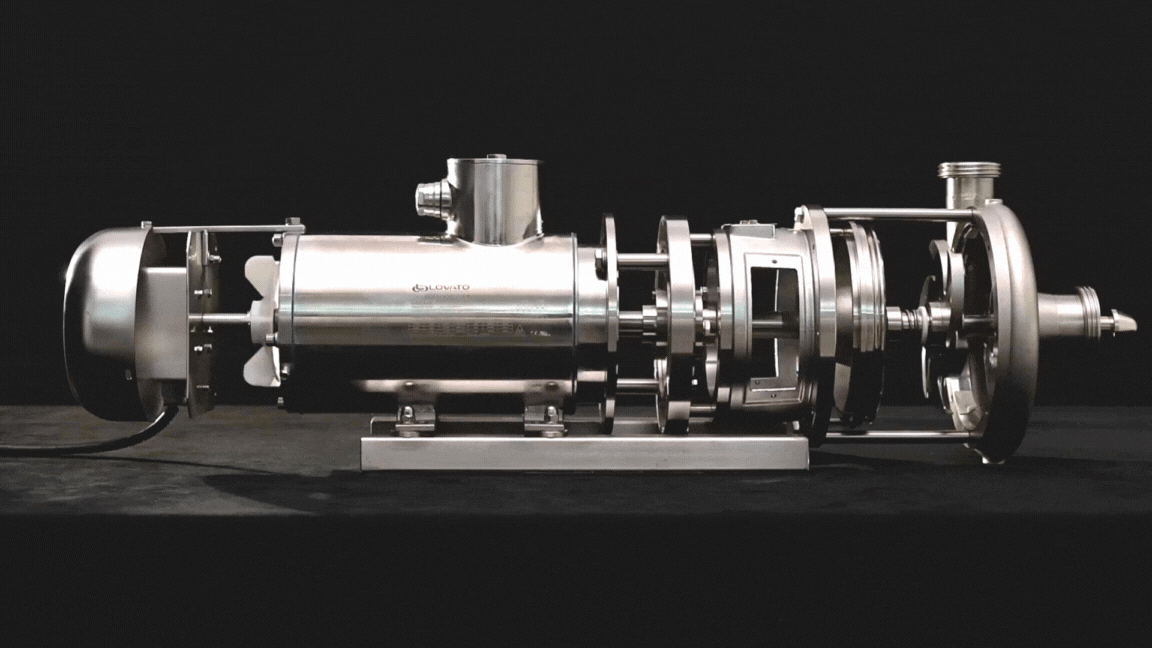

The washdown centrifugal pump, exploded: AISI 316L casing, impeller, mechanical seal and IP69-K motor — modular by design, every part accessible and serviceable.
FZ-CP · exploded assemblyAISI 316L · built to measure

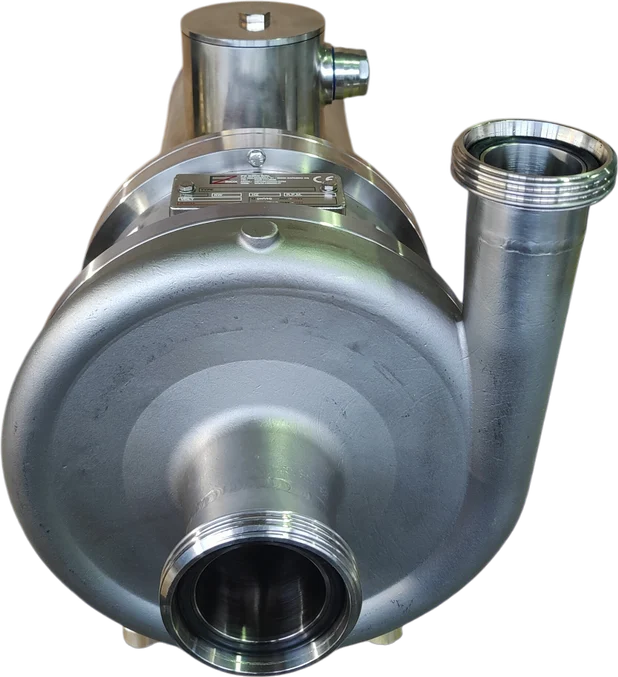

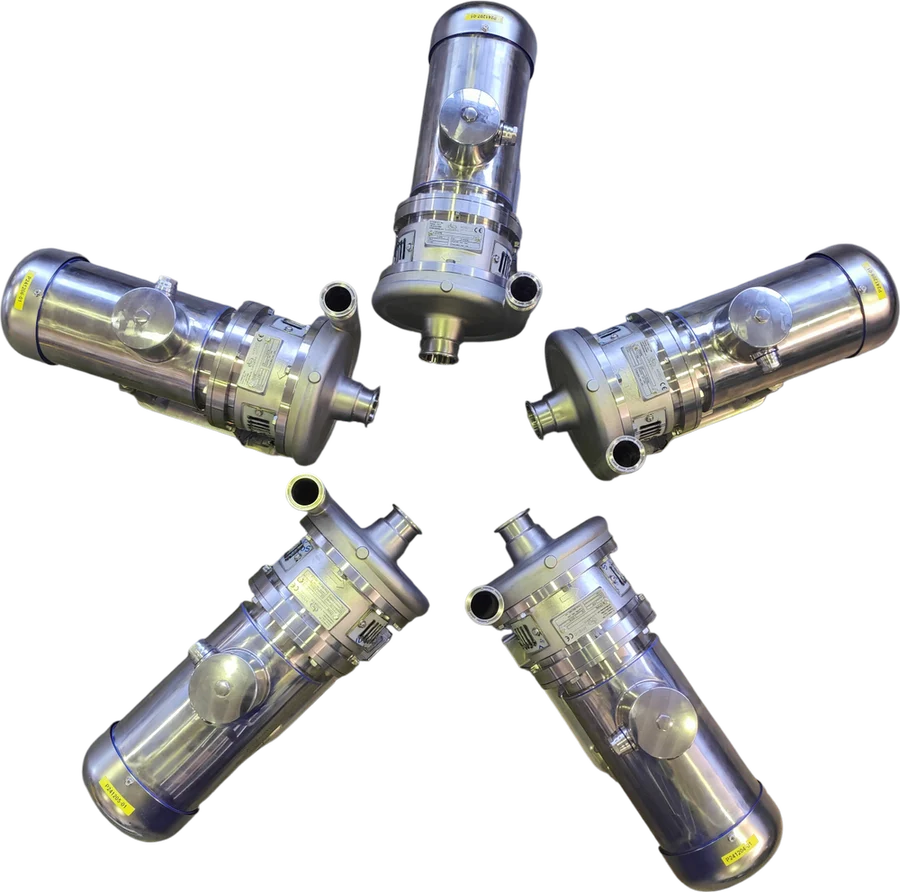

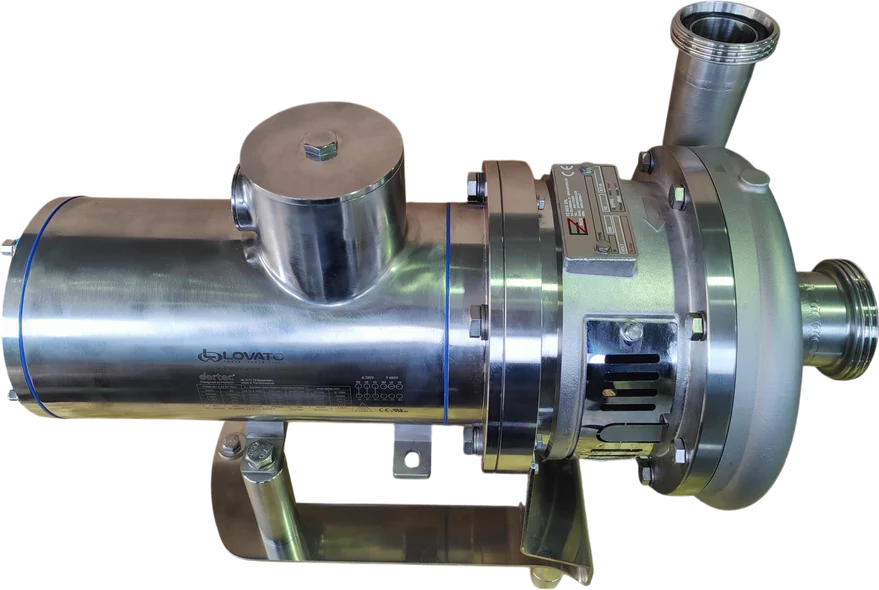

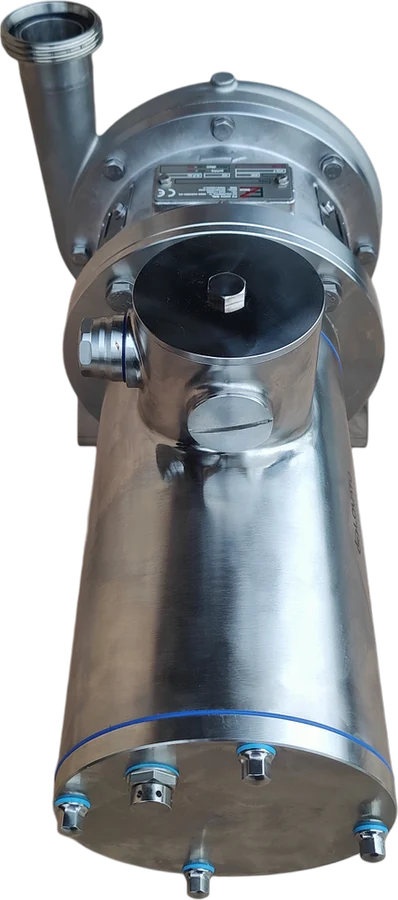

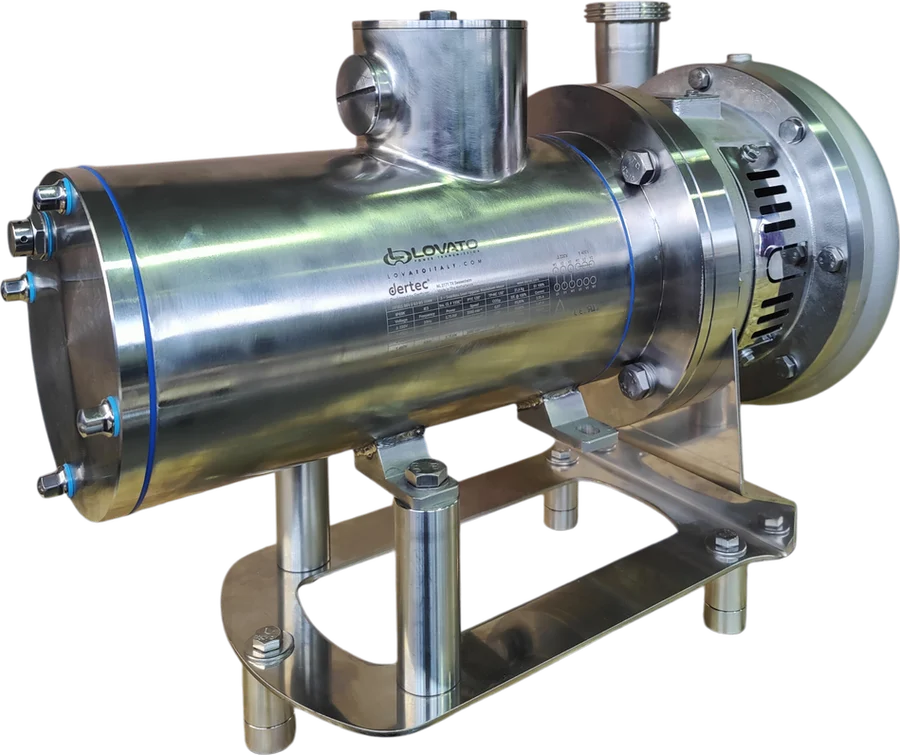

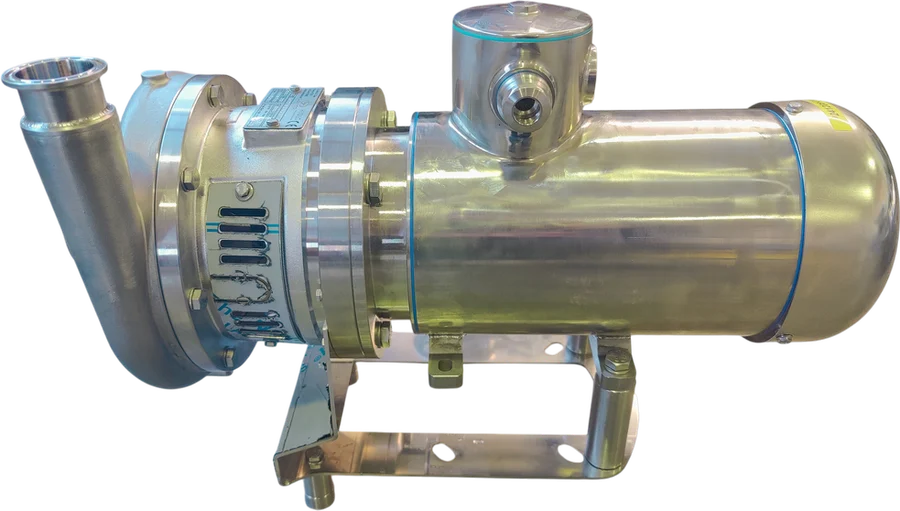

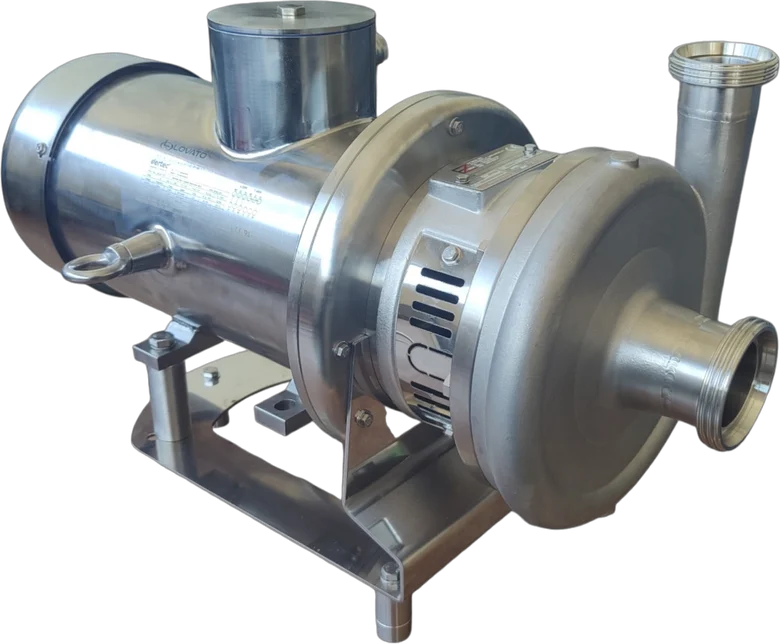

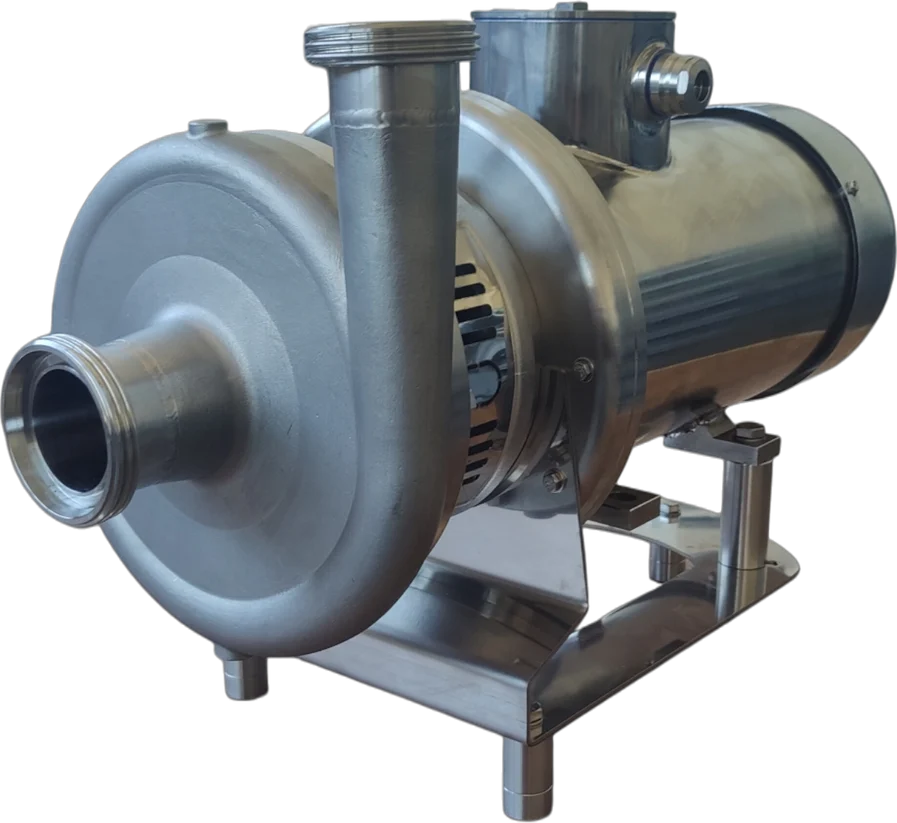

Details & components
Tap any image to enlarge.

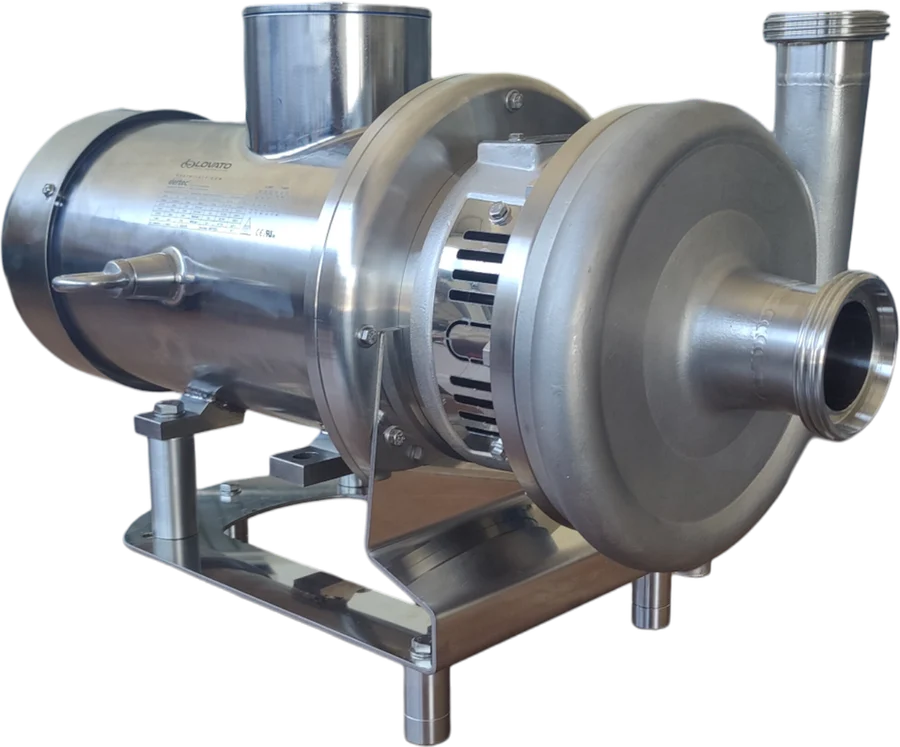

1
2
3
4
5
6
7
8

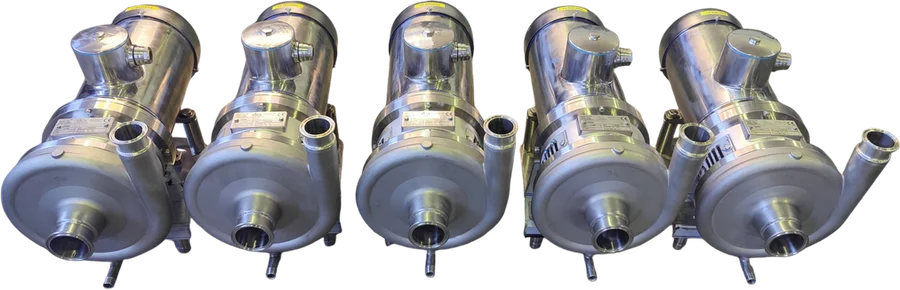

9
10
11
12
13
14
15
16

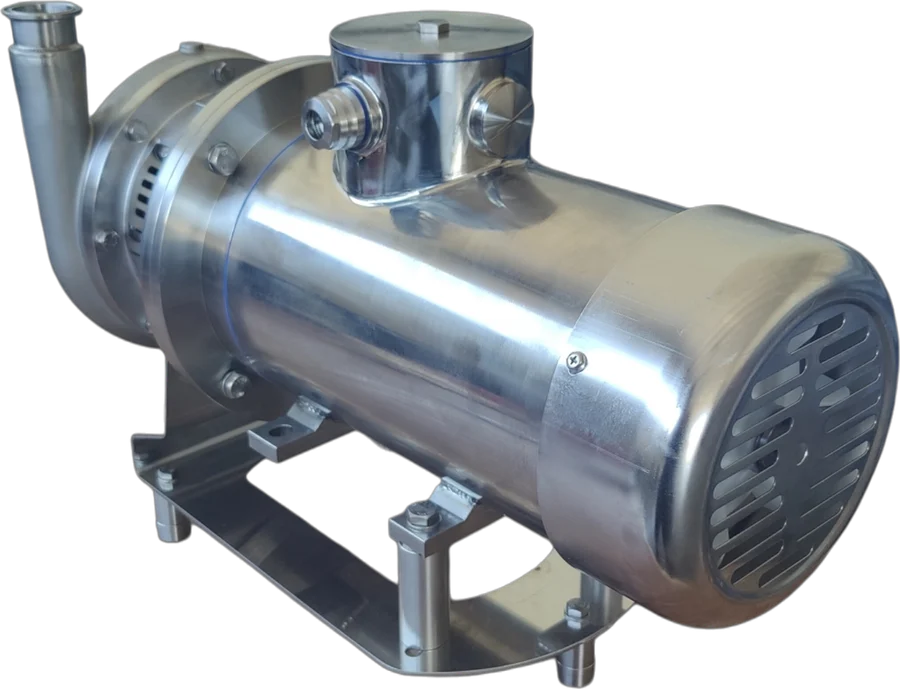

17
18
19

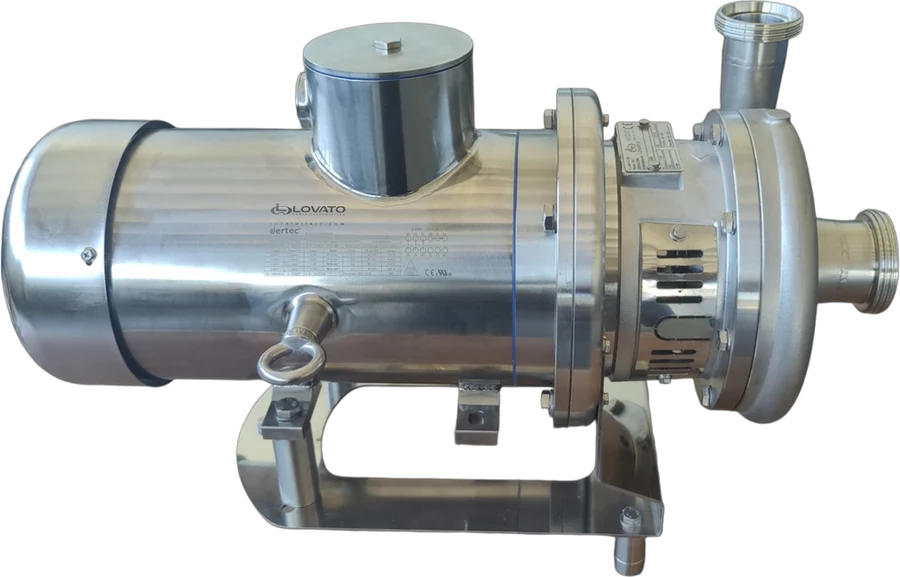

20
Frequently asked questions
The answers we are asked most often. Not here? Write to us.
Are the FZ-CP pumps available at 60 Hz?
Yes. The whole FZ-CP range is tested and curved at both 50 Hz (2900 rpm) and 60 Hz (3500 rpm) — you will find both in the performance-curve tool, under the "50 vs 60 Hz" tab.
Which materials are in contact with the product?
AISI 316L on every product-contact part, with a polished finish for hygiene. The motor housing is AISI 316. Gaskets are EPDM.
Which mechanical seal do you fit?
The mechanical seal is selected to suit your fluid and its operating temperature — it is not a fixed choice, we define it together with you.
Which impeller does it use?
An open impeller: the vanes have no front shroud, so the passages stay wide, liquids with fine solid particles go through without clogging, and the pump is easy to clean and inspect.
What is the maximum discharge pressure?
4.5 bar at 50 Hz, with the largest models at zero flow: with water that is about 45 m of head. Smaller models reach less: the head of each model is in the “Performance by model” table and on the curves.
Which hygienic connections can I have?
DIN 11851 as standard (Italy). On request Tri-Clamp, SMS, flanges and other hygienic connections, to match your existing plant.
What does IP69-K protection mean?
It is the highest ingress rating: the motor withstands close-range, high-pressure and high-temperature water jets — made for washdown lines where the machine is hosed down daily.
Do you build pumps to measure?
Yes. Every unit is sized on your duty point — flow and head — send us your data and we build it around it.
What certifications do you have?
CE marking and Made in Italy — designed and built entirely in our Thiene (VI) workshop.
