Products / FZ-SP IP69-K Self-priming pump IP69-K
FZ-SP IP69-K · Food-grade stainless steel

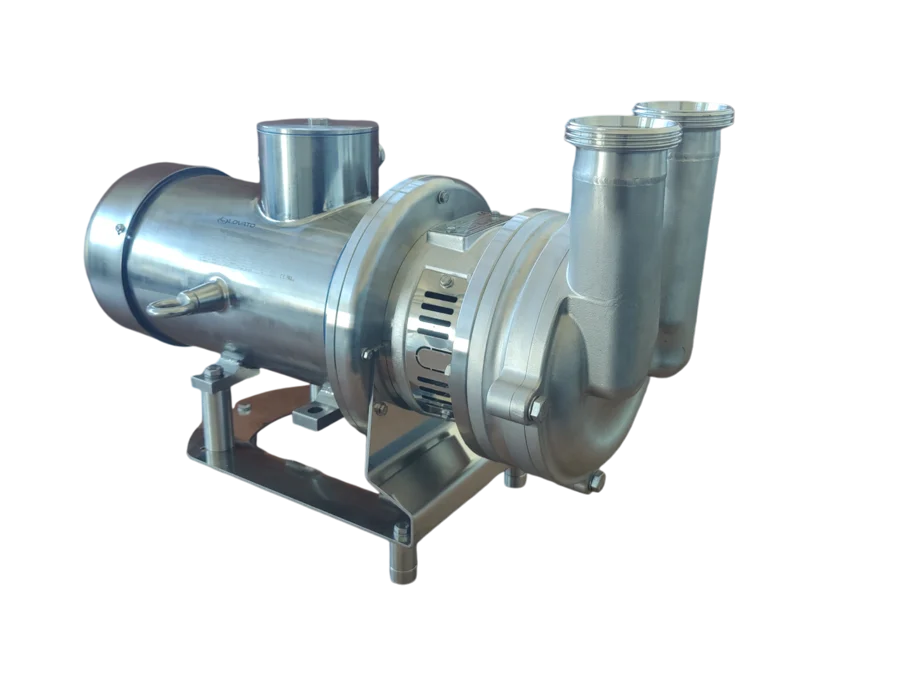

Self-priming pump IP69-K
Self-priming, sealed to IP69-K.
The FZ-SP self-priming pump with IP69-K motor is ideal for the harshest environments — combining easy self-priming with maximum protection against water and dust.
Built in food-grade stainless steel, it supports CIP and SIP cleaning and delivers reliable, energy-efficient operation.
Technical guideCentrifugal or self-priming: which you needRequest a quote
Technical specifications
Washdown-rated version of the FZ-SP self-priming pump.
Construction
Stainless steel — AISI 316L on all product-contact parts
Motor protection
IP69-K — high-pressure / steam washdown
Motor power
3.0 kW · 4.0 kW · impeller Ø192 mm
Speed
≈ 1450 rpm (4-pole)
Power supply
400 V · 3-phase · 50 Hz — 60 Hz coming soon
Hygienic connections
DIN 11851 standard (IT) — Tri-Clamp, SMS, flanges & other connections on request
Mechanical seal
Selected to suit your fluid and its operating temperature
Compliance
CE marked · Made in Italy
✓ AISI 316L on product-contact parts
✓ Polished finish for hygiene
💬 You talk to the people who build it
📦 We ship across Europe & beyond
Models & dimensions
By electric-motor output. FZ-SP30 and FZ-SP40 share the same overall dimensions. Indicative, not binding.
3.0 – 4.0 kW · IP69-K
- FZ-SP30 IP69-K 3.0 kW · up to 18 m³/h
- FZ-SP40 IP69-K 4.0 kW · up to 24 m³/h
Built under your name
The nameplate can be yours
Every FZ-SP leaves the workshop with a stainless steel nameplate: model, serial number, power, speed, flow and pressure — readable for the whole life of the pump.
- Your logo and your addressOn request we engrave the nameplate with your own logo and address: the pump reaches the plant under your name.
- The curve of the pump you orderAsk us for the performance curve of your exact configuration: we send it with the quotation.
Performance curves
Interactive tool — curves shown for the standard FZ-SP; exact IP69-K duty on request.
Performance by model
Values at 50 Hz and 1450 rpm, read from the H–Q curves above: maximum flow and maximum head, that is at zero flow.
| Model | Power | Max flow | Max head |
|---|---|---|---|
| FZ-SP30 IP69-K | 3 kW | 18 m³/h | 18 m |
| FZ-SP40 IP69-K | 4 kW | 24 m³/h | 26 m |
Hygienic connections
Every unit is fitted with the coupling your line uses. DIN 11851 is our standard — the rest are available on request, so the pump drops straight into your existing plant.
Standard
DIN 11851
Threaded hygienic union — the food-industry standard in Italy and much of the EU.
On request
Tri-Clamp
Clamp connection with quick release — fast to open for inspection and cleaning.
On request
SMS 3008
Swedish dairy union — common on international dairy and beverage lines.
On request
Flange & others
Bolted flanges, IDF/RJT, and other hygienic couplings to match your plant.
Your standard?
Tell us which standard your line uses — we build the pump to match.

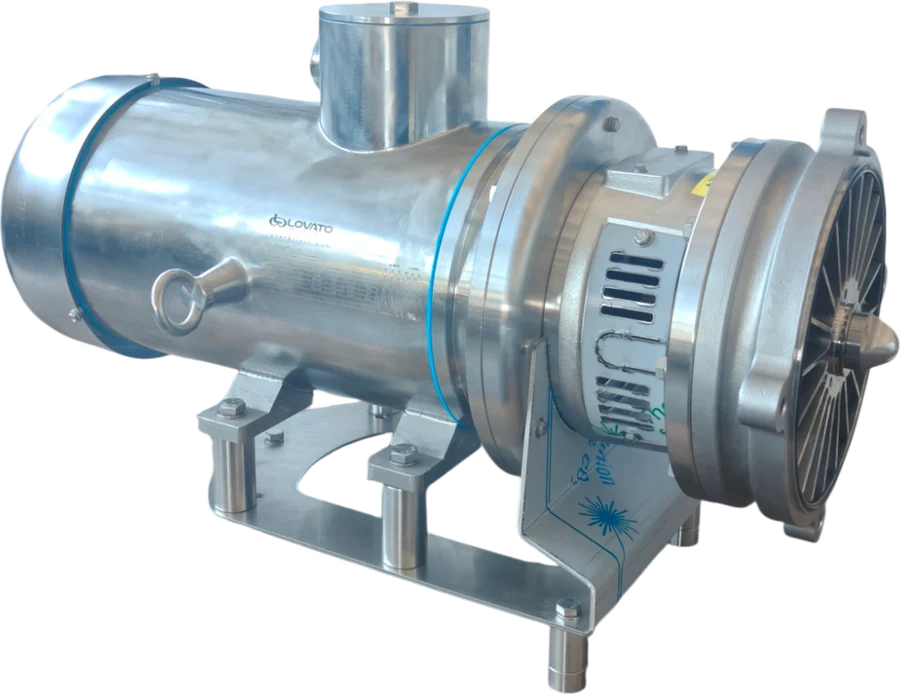

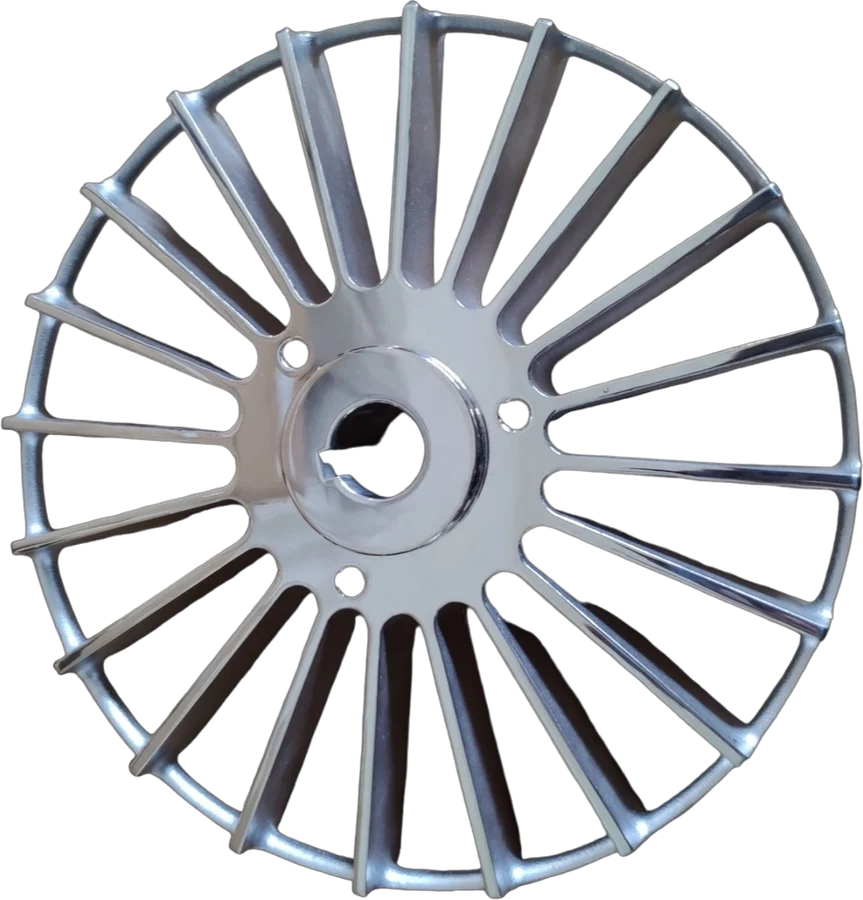

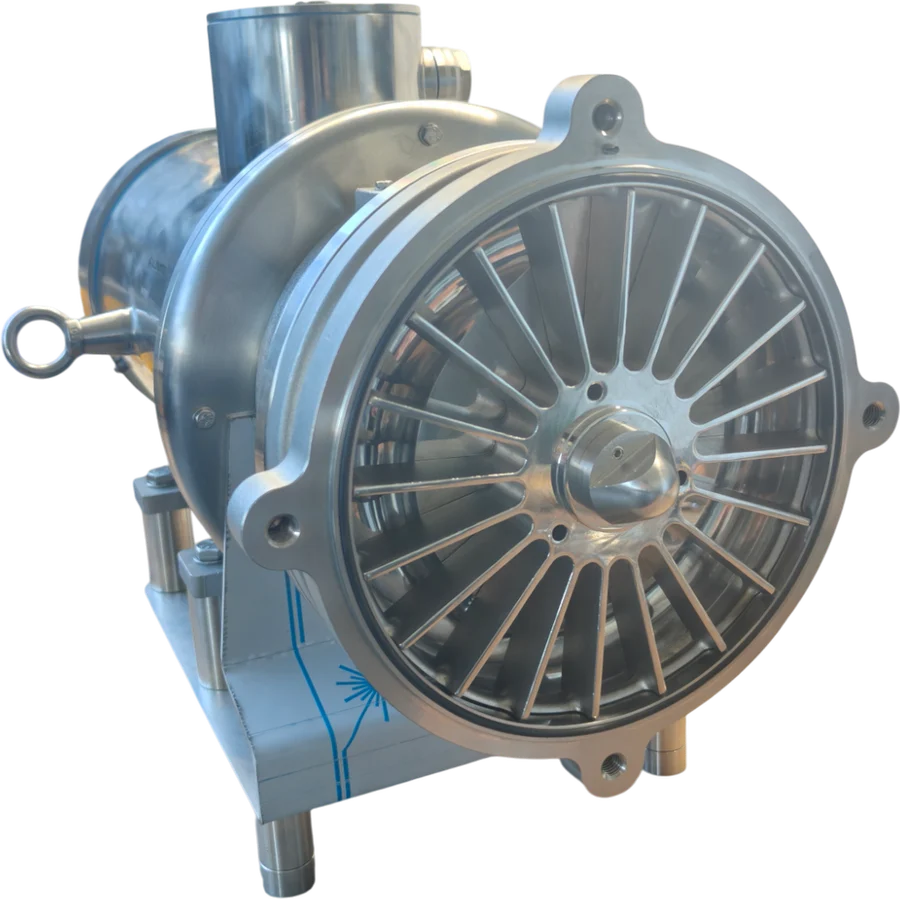

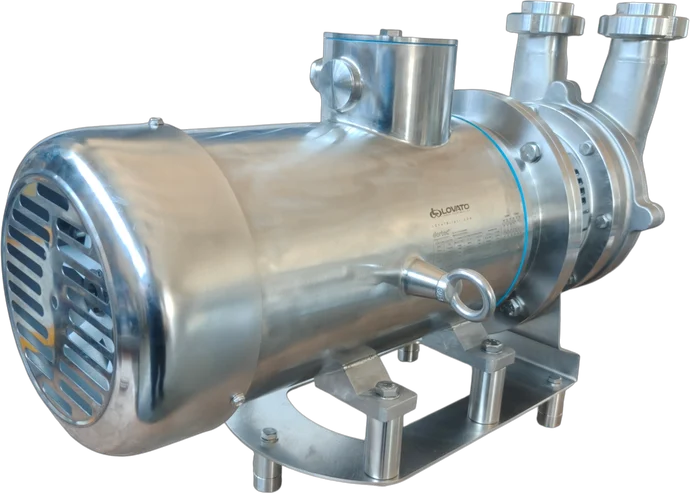

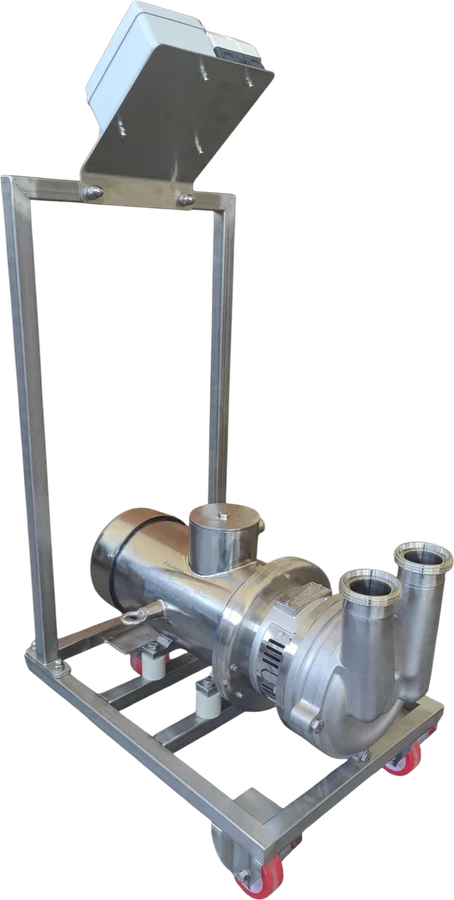

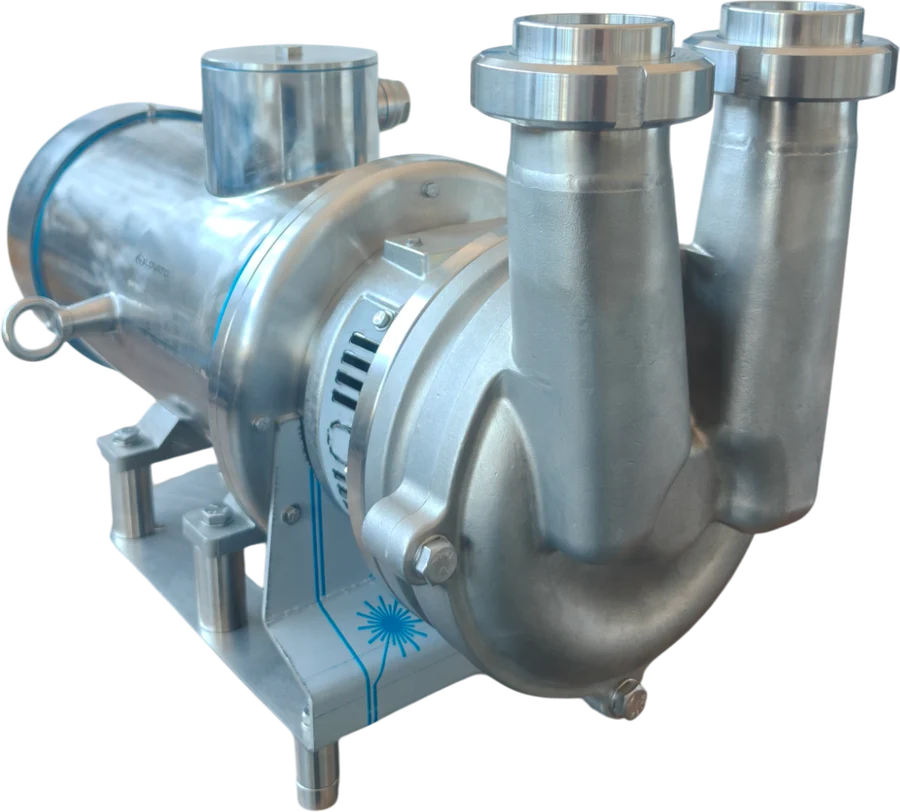

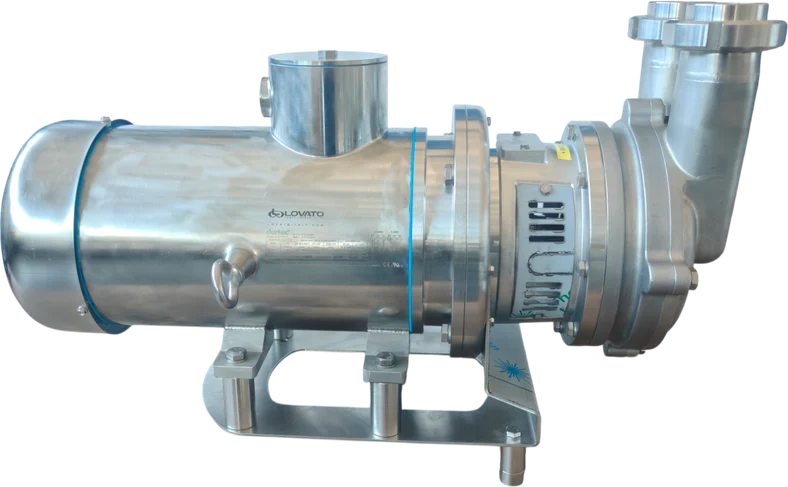

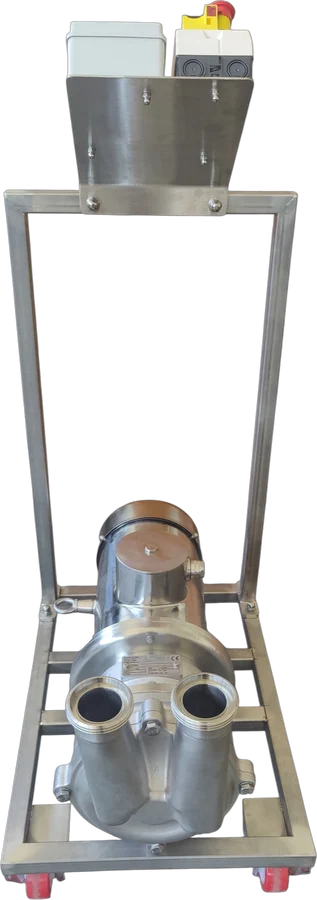

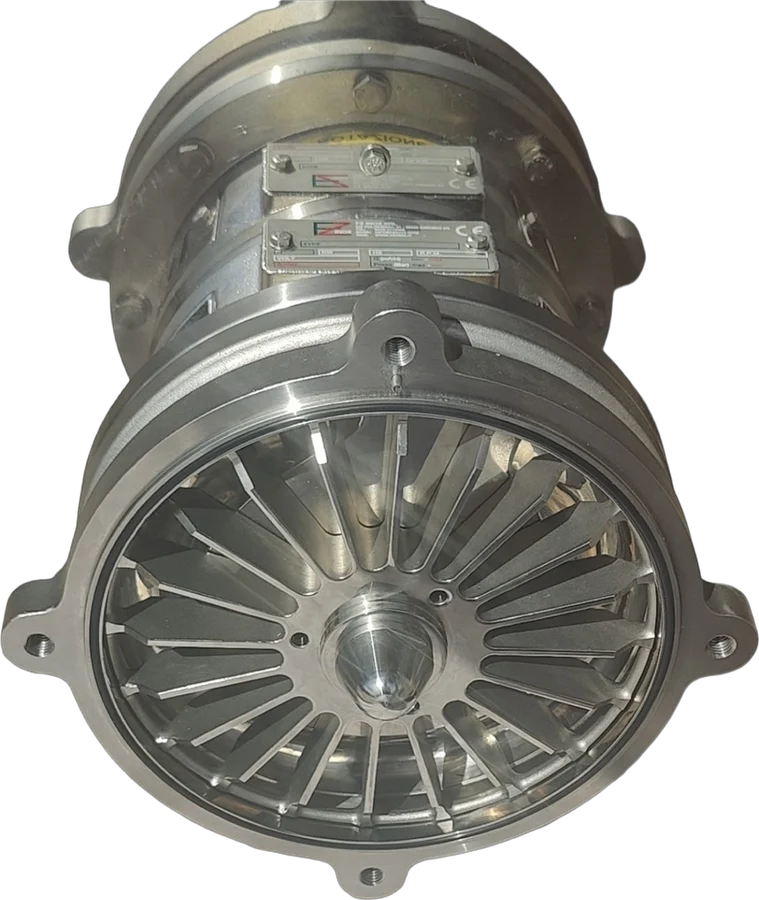

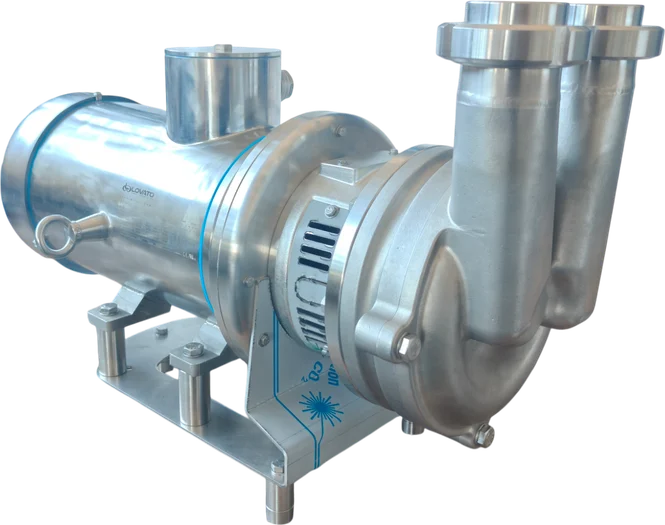

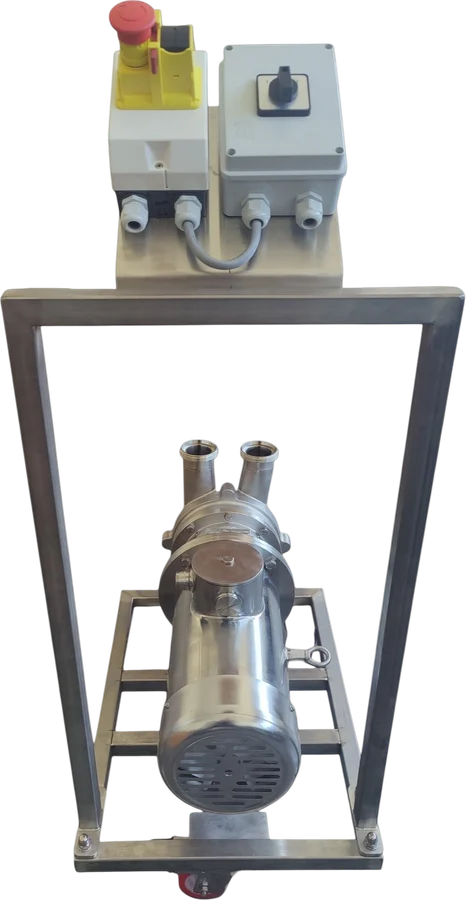

Details & components
Tap any image to enlarge.
1
2
3
4
5
6
7
8
9
10
11
Frequently asked questions
The answers we are asked most often. Not here? Write to us.
Are the FZ-SP pumps available at 60 Hz?
The FZ-SP range is published at 50 Hz (≈1450 rpm). The 60 Hz test campaign is in preparation — for 60 Hz export duties, contact us and we will size the right unit.
Which materials are in contact with the product?
AISI 316L on every product-contact part, with a polished finish for hygiene. The motor housing is AISI 316.
Which mechanical seal do you fit?
The mechanical seal is selected to suit your fluid and its operating temperature — it is not a fixed choice, we define it together with you.
Which hygienic connections can I have?
DIN 11851 as standard (Italy). On request Tri-Clamp, SMS, flanges and other hygienic connections, to match your existing plant.
What does IP69-K protection mean?
It is the highest ingress rating: the motor withstands close-range, high-pressure and high-temperature water jets — made for washdown lines where the machine is hosed down daily.
Do you build pumps to measure?
Yes. Every unit is sized on your duty point — flow and head — send us your data and we build it around it.
What certifications do you have?
CE marking and Made in Italy — designed and built entirely in our Thiene (VI) workshop.
