The FZ-TB triblender (powder dissolver) mixes powders into liquids instantly and without lumps, producing homogeneous dispersions for the food industry.

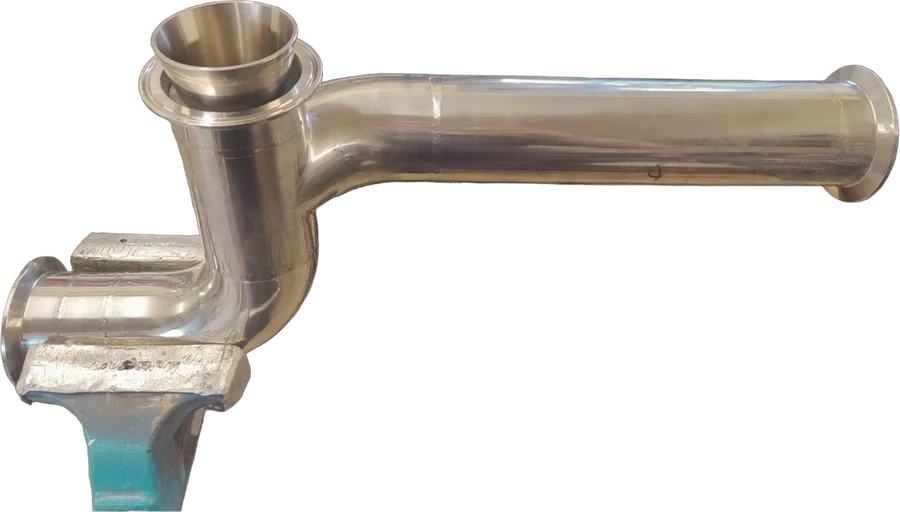

Built in stainless steel with a Venturi body and a built-in washing (CIP) system, it can even draw in liquids and powders by vacuum — with no need for a supplementary feed pump.

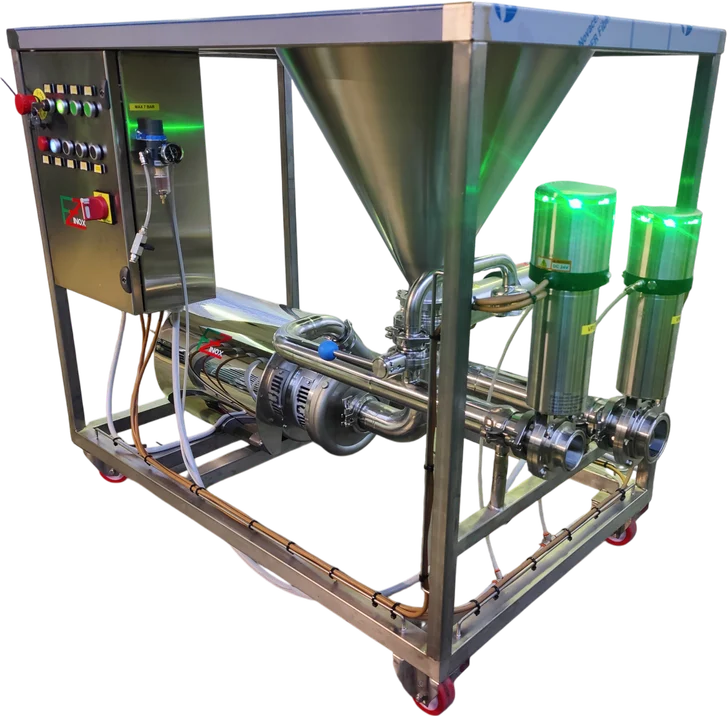

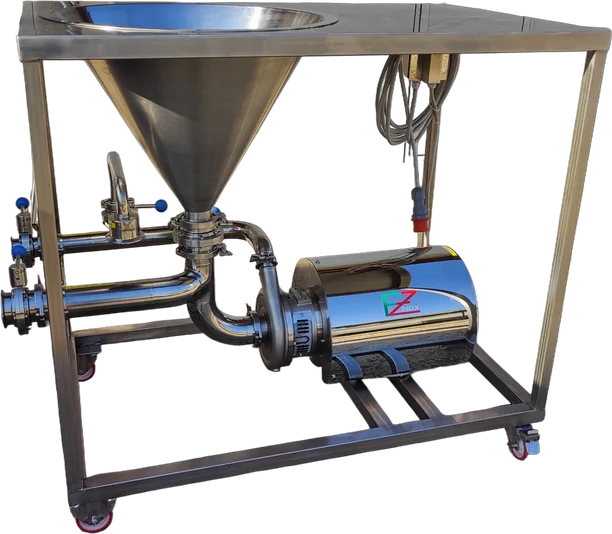

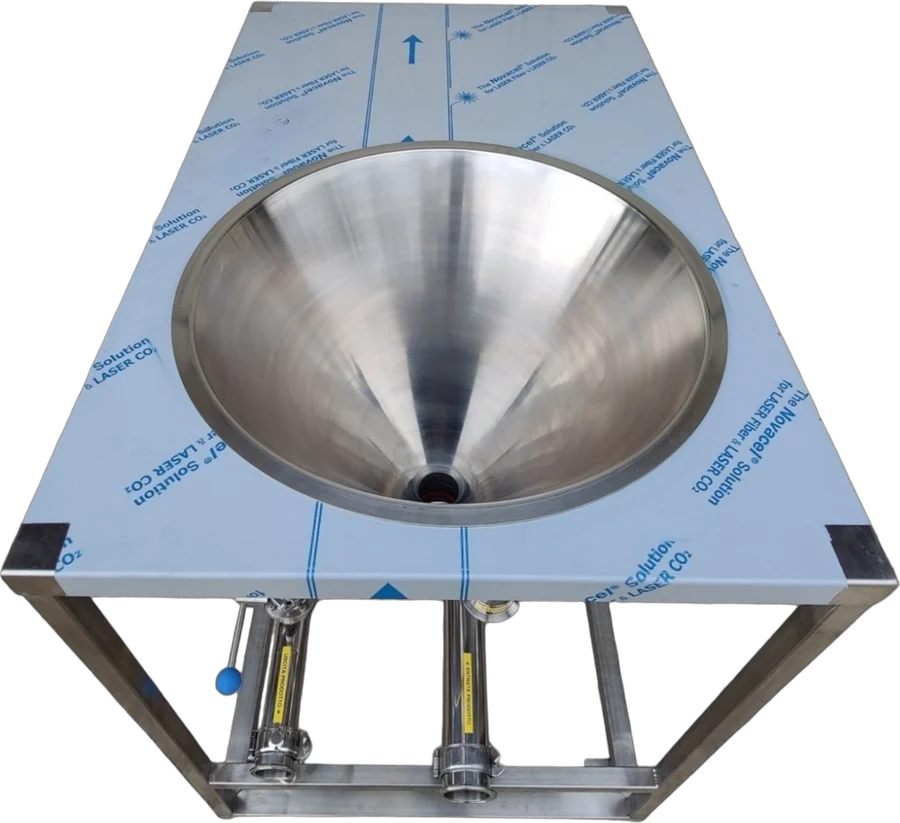

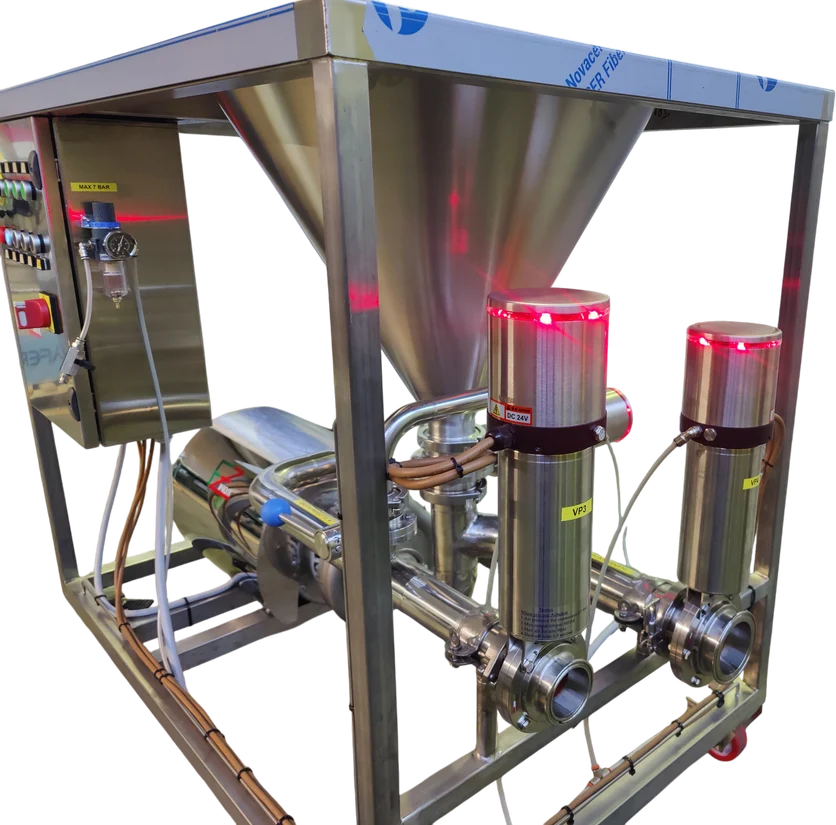

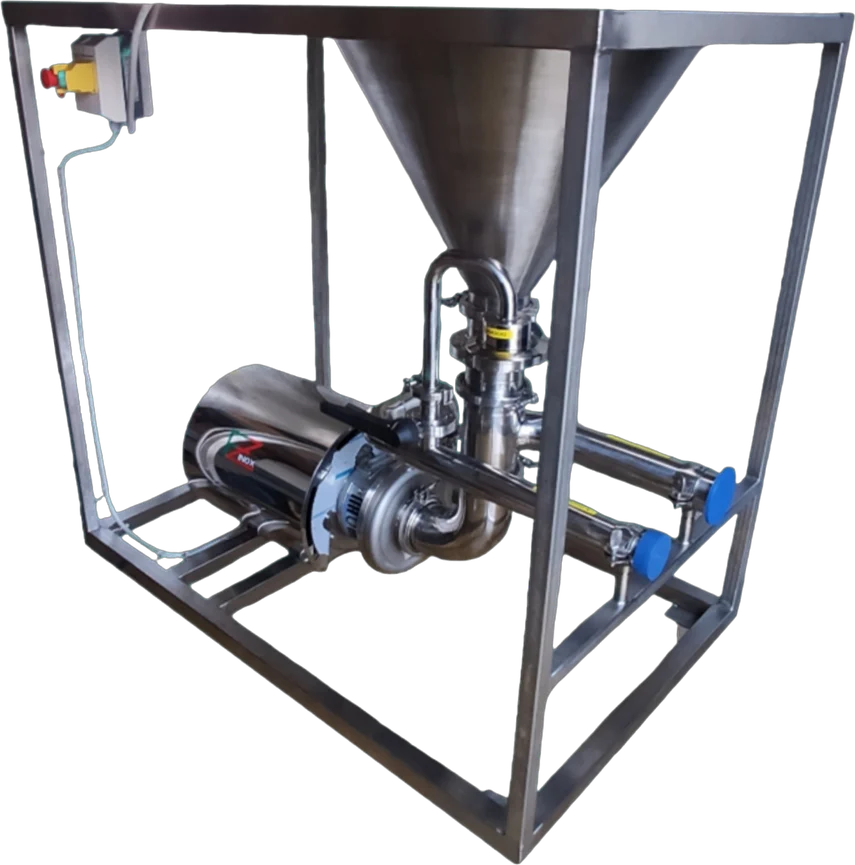

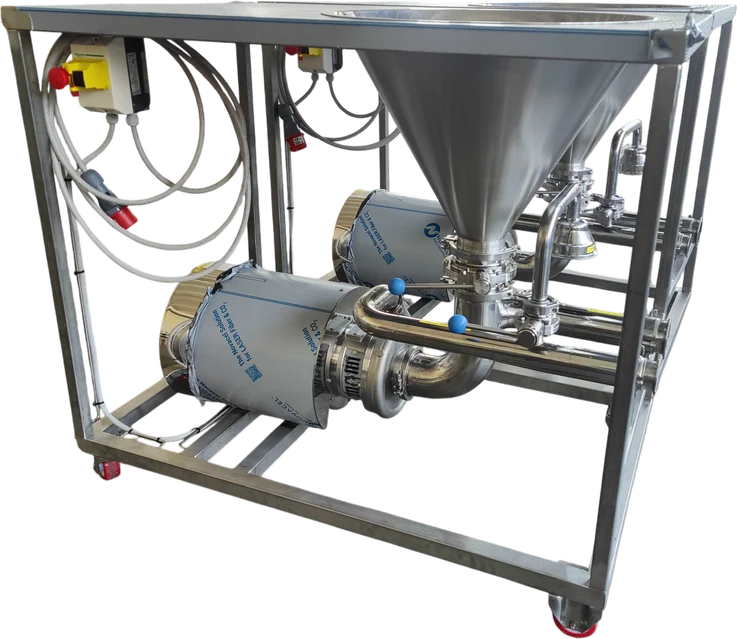

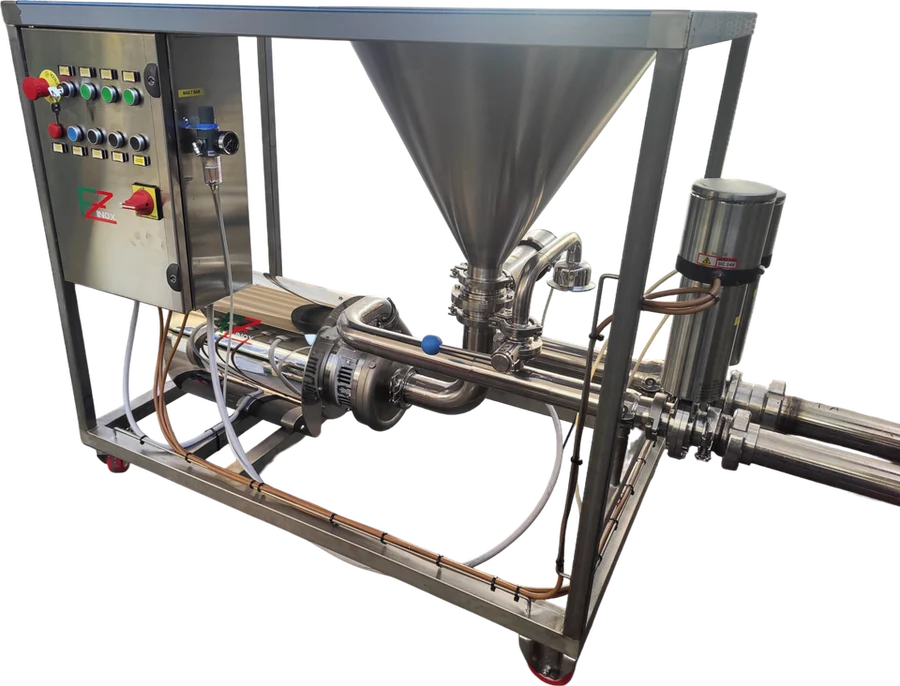

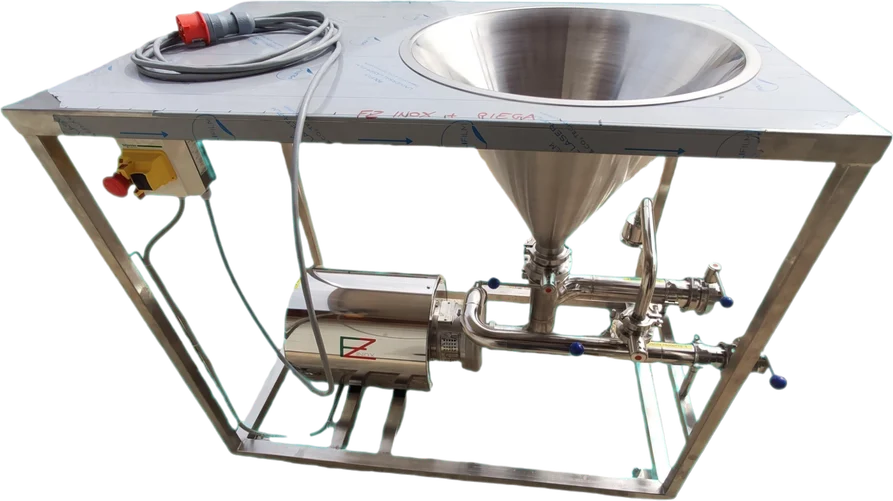

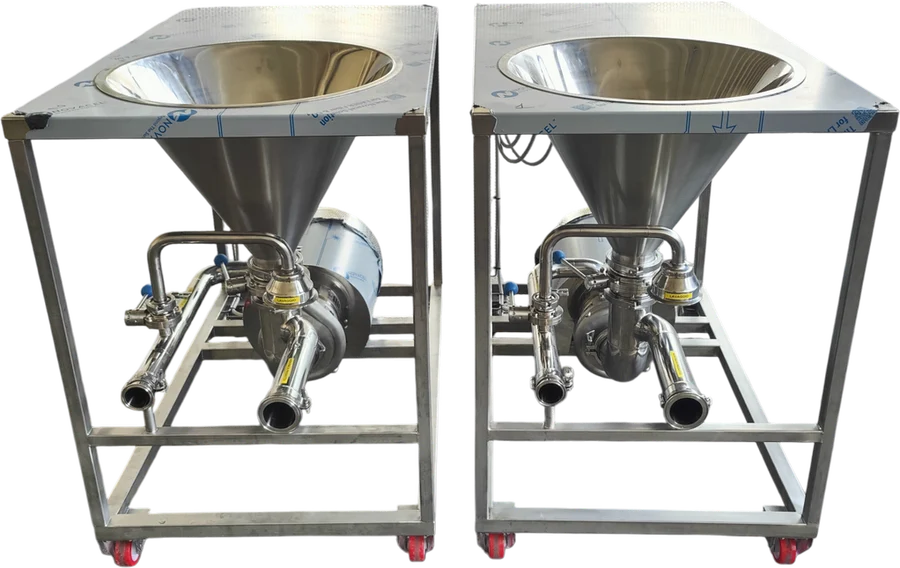

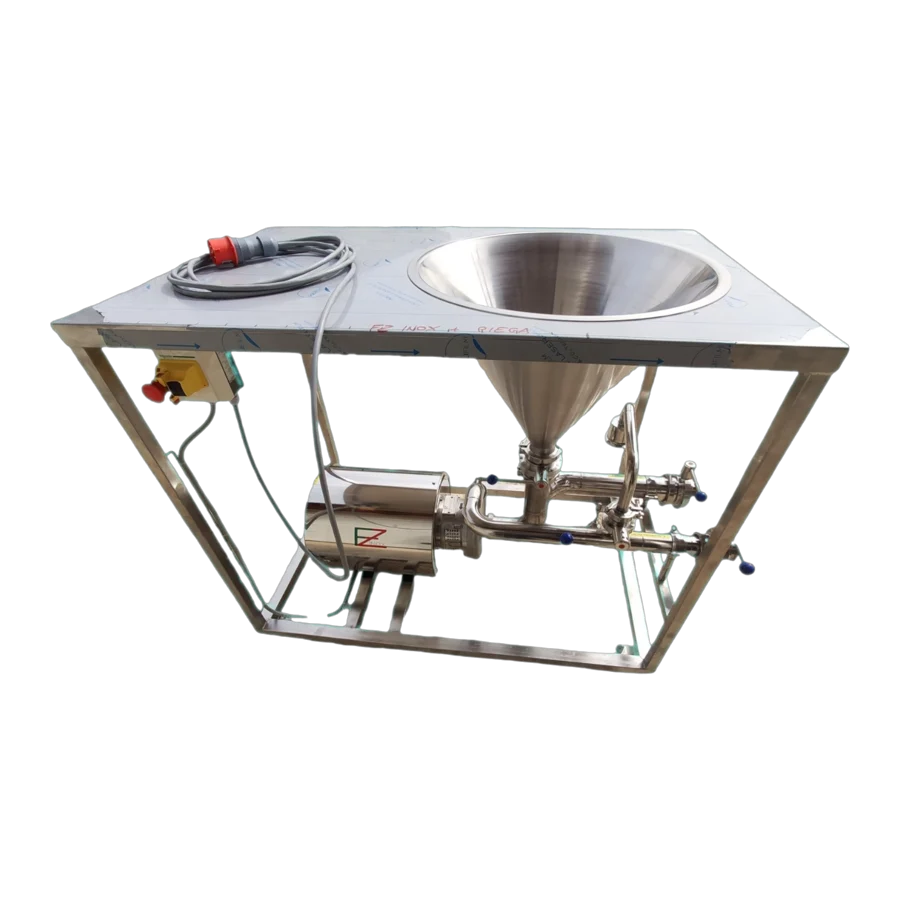

Mounted on a sturdy table to optimise space, with wheels for easy movement.
Sized to your product & throughput — made to measure
Hygienic connections
DIN 11851 standard (IT) — Tri-Clamp, SMS, flanges & other connections on request
Compliance
CE marked · Made in Italy
✓ AISI 316L on product-contact parts
✓ Polished finish for hygiene
💬 You talk to the people who build it
📦 We ship across Europe & beyond
Technical note — powders it is not suited to
The triblender is not suited to xanthan gum and other instantly hydrating thickeners: the solution thickens within seconds, turns into a non-Newtonian fluid and stops flowing through the pipes — the venturi system clogs and the machine is out of service until it is dismantled and washed. Thickeners of moderate viscosity remain well within the machine's working range. If you need to dissolve products of this kind, talk to us first: we will tell you straight away whether the triblender is right for the job.
Models & dimensions
Indicative dimensions, not binding.
Complete CIP sanitisation
Standard on every triblender, with nothing to add.

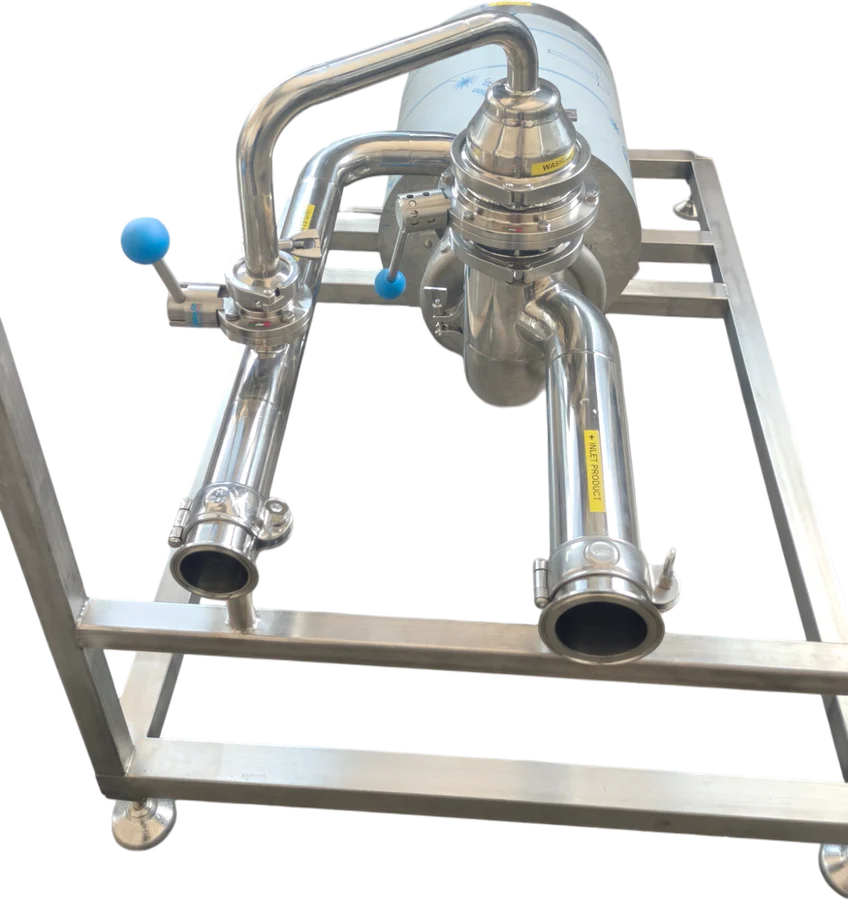

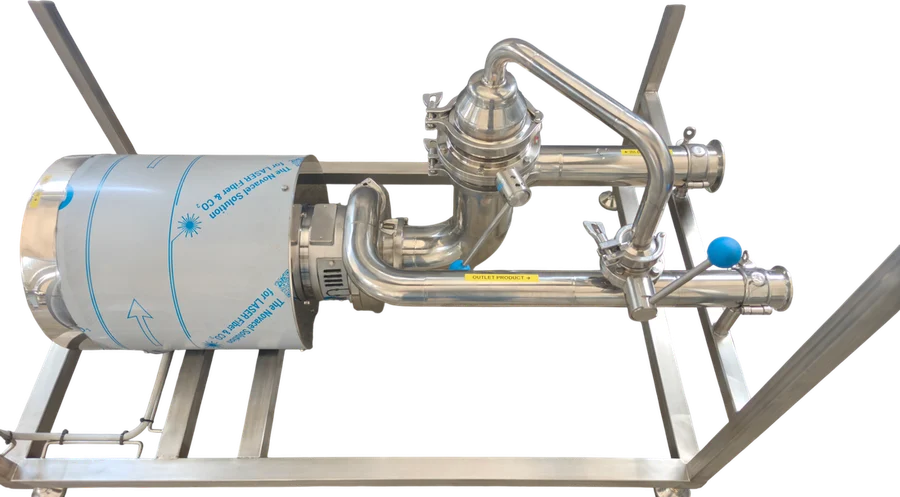

When the line is washed or sanitised with CIP, the triblender is not left out. Remove the hopper and in its place connect the recirculation pipe you see below, already provided on the delivery side.
Open the hopper valve and the cleaning solution runs through the whole circuit: the pump, the venturi system and the valve itself — exactly the spots where powder residues hide most readily, and that an in-line wash normally does not reach.
The circuit closes on itself and the triblender is sanitised together with the rest of the line: no piece-by-piece disassembly, no shadow zones. It is a system we supply as standard on every triblender.

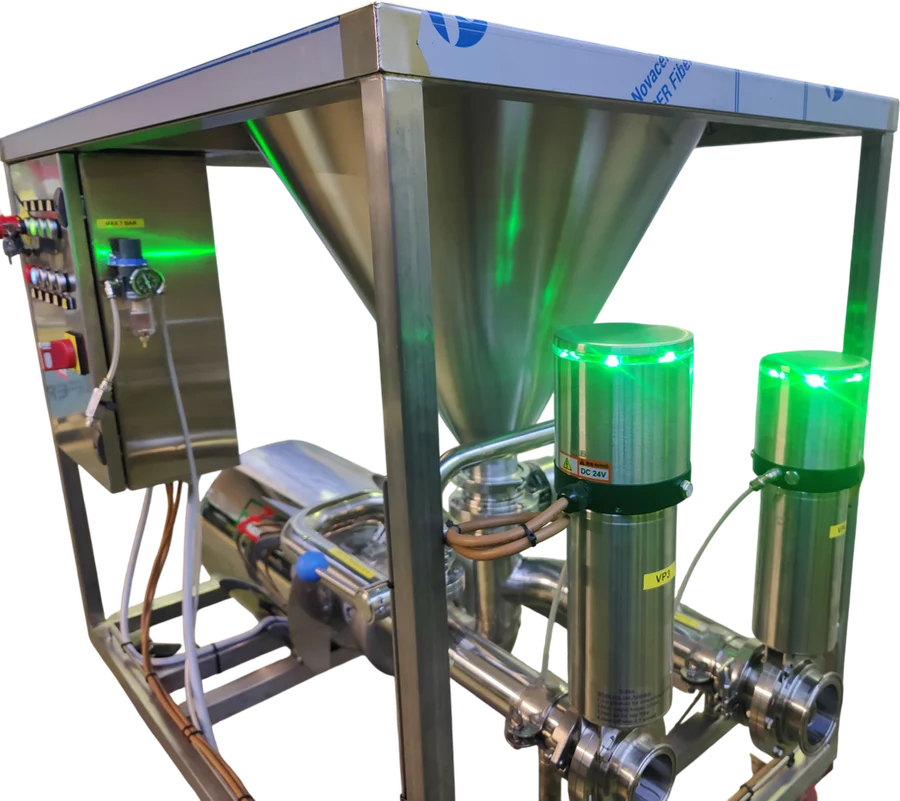

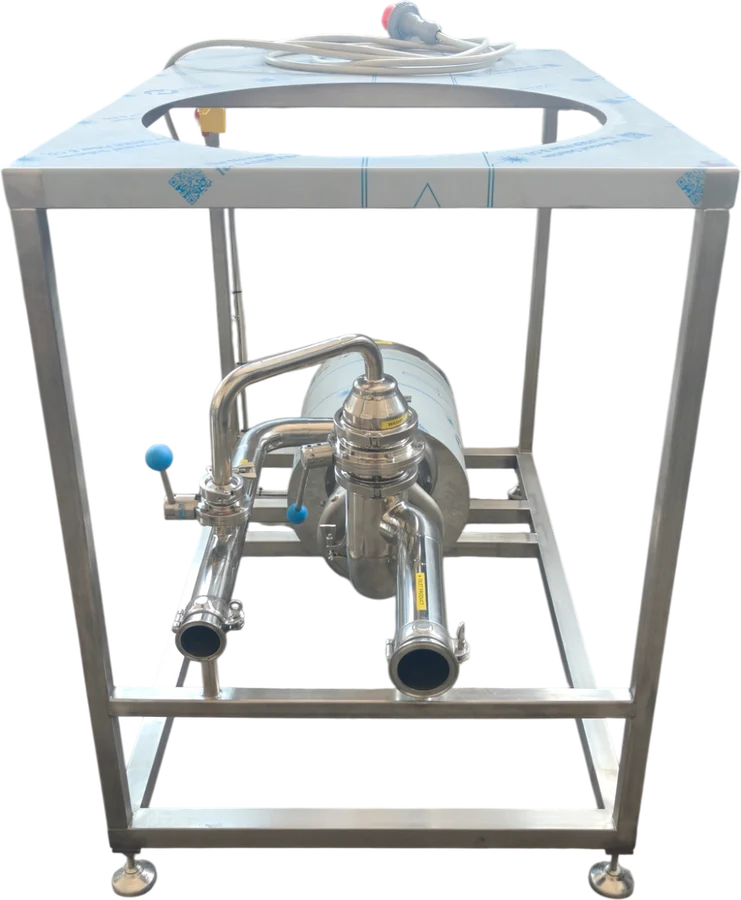

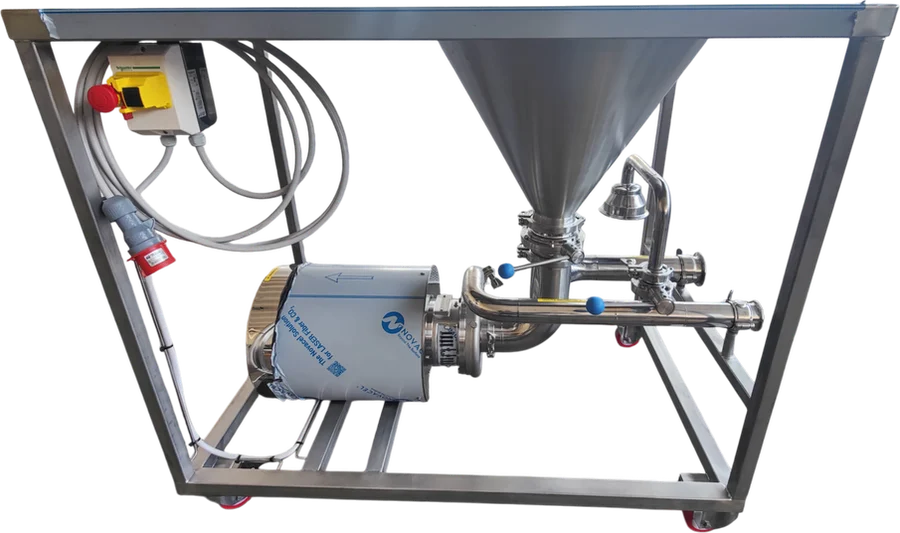

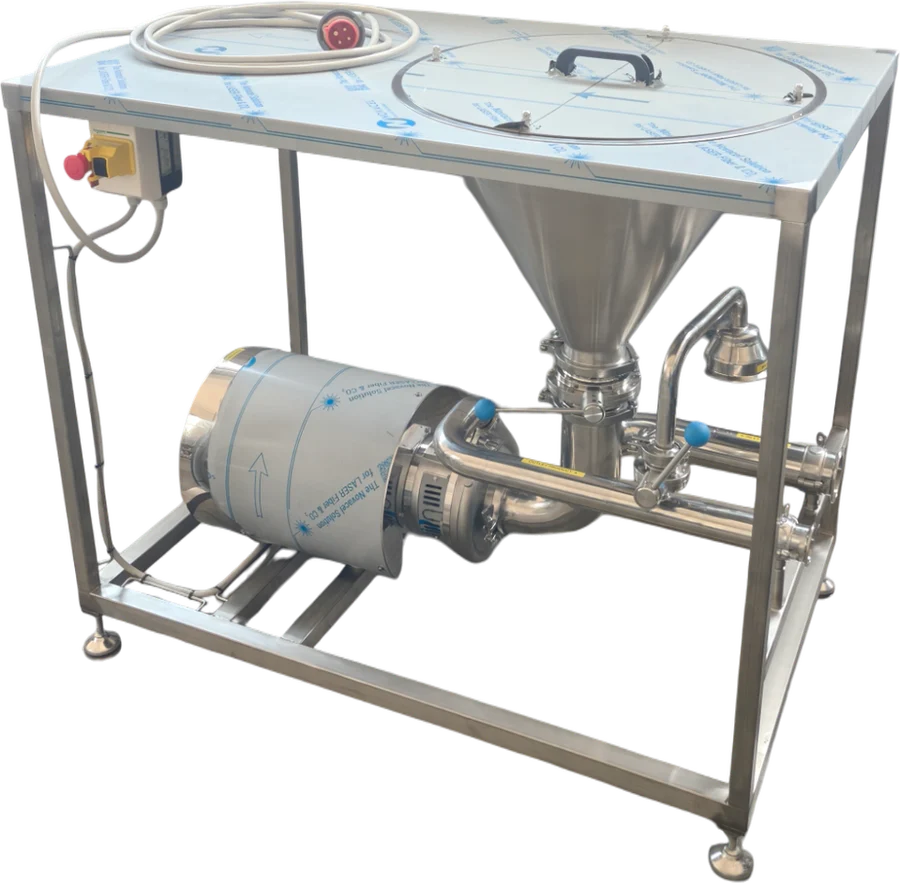

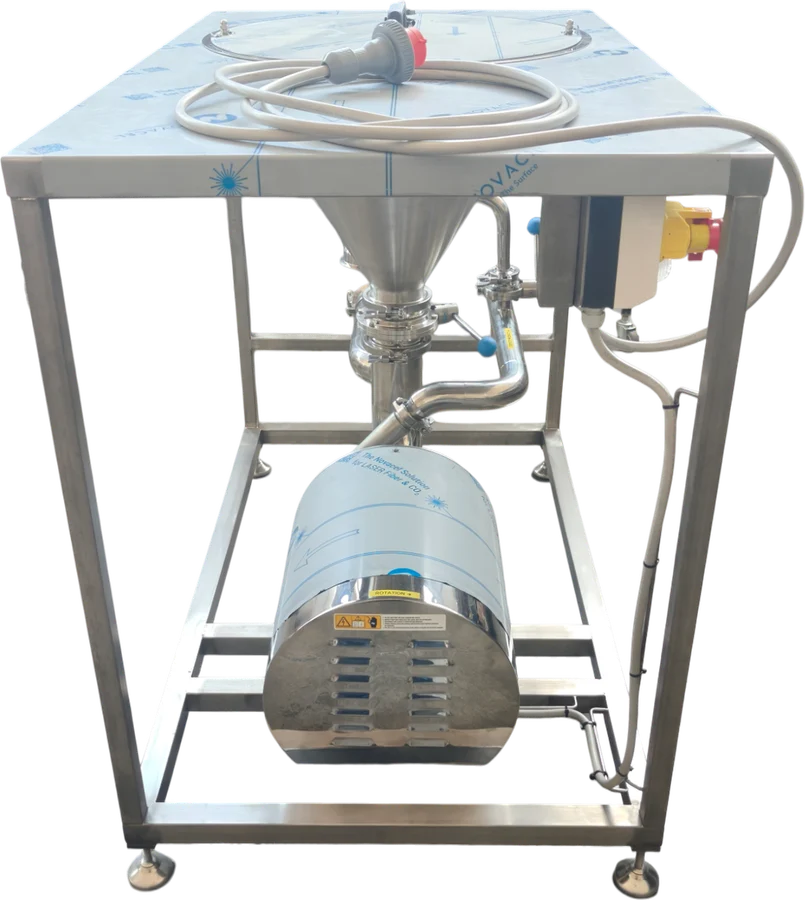

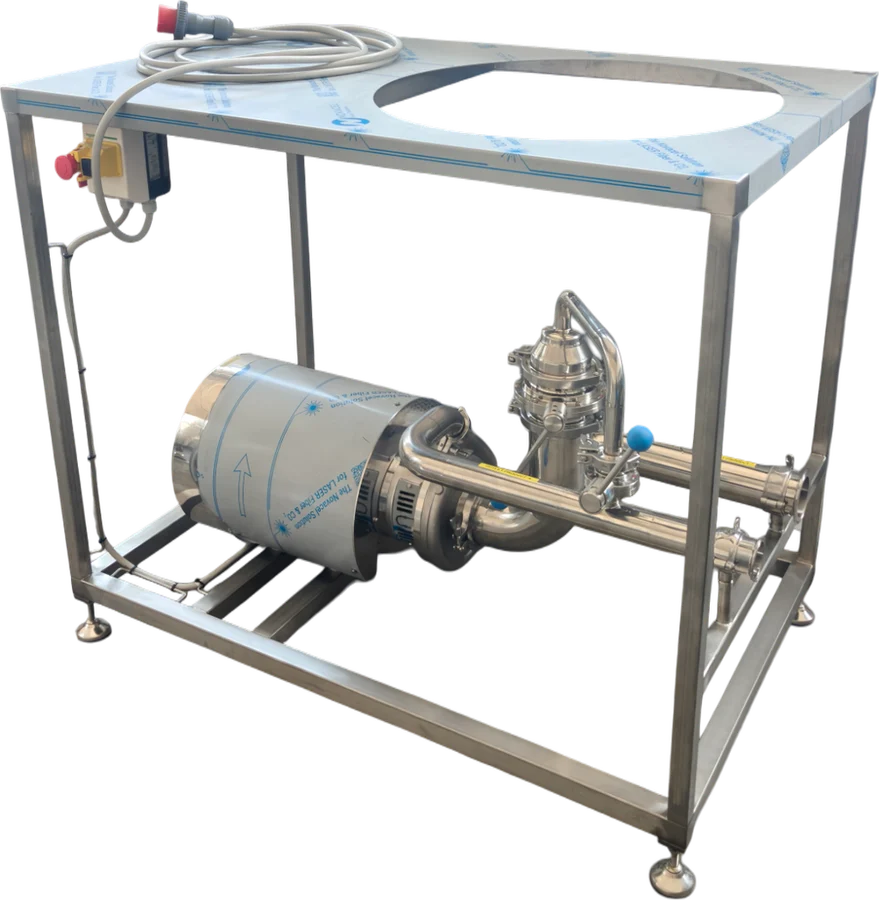

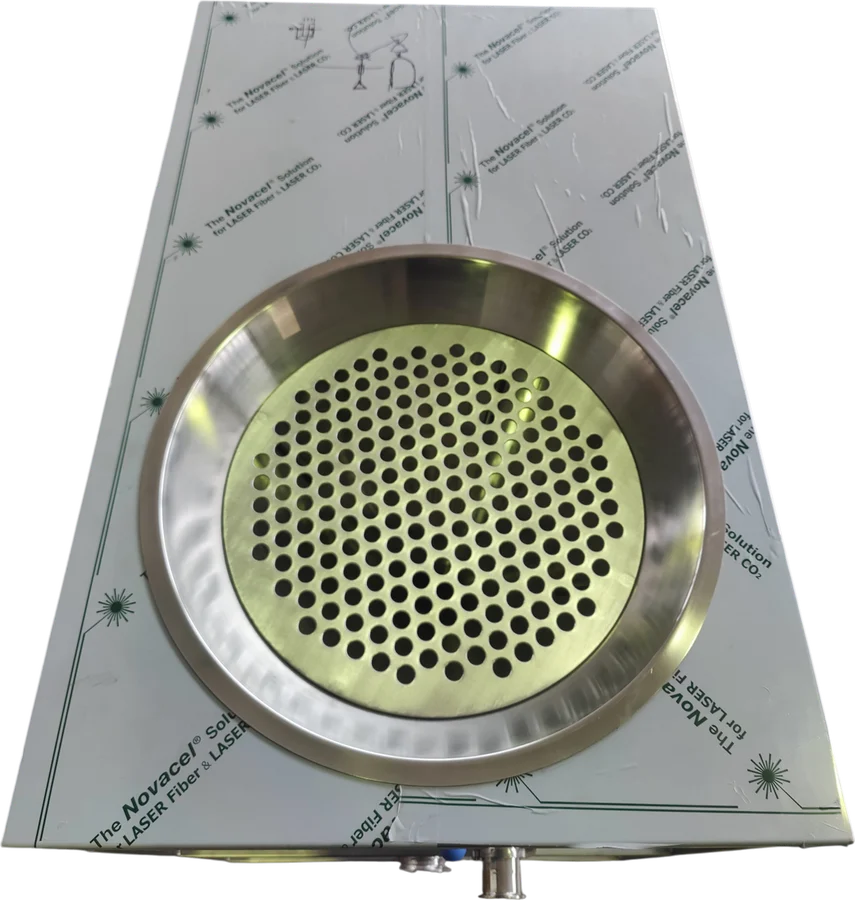

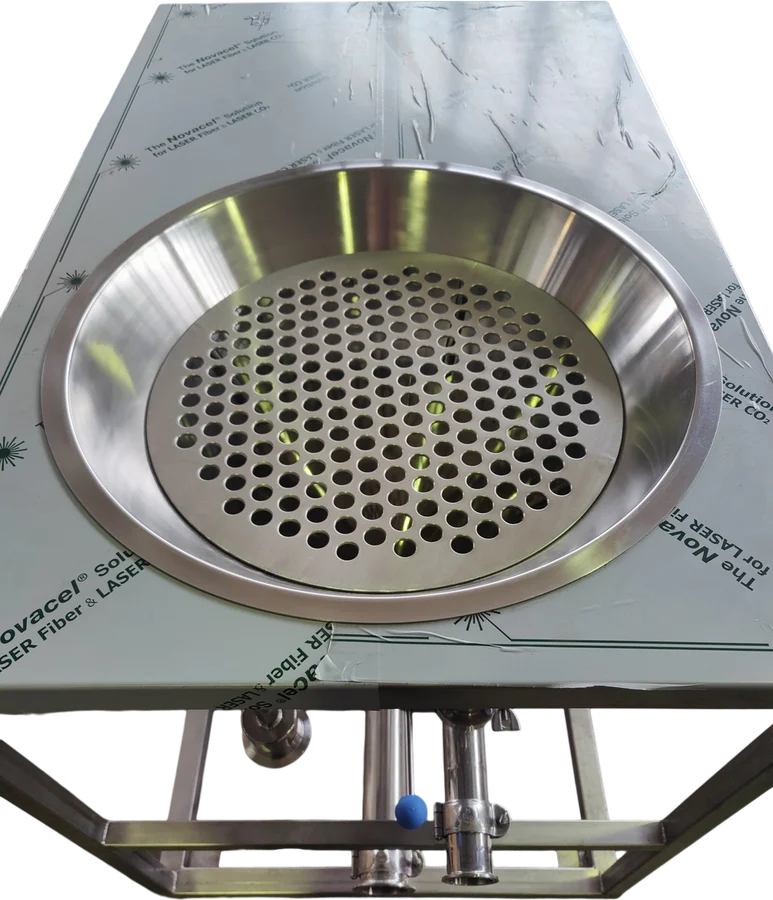

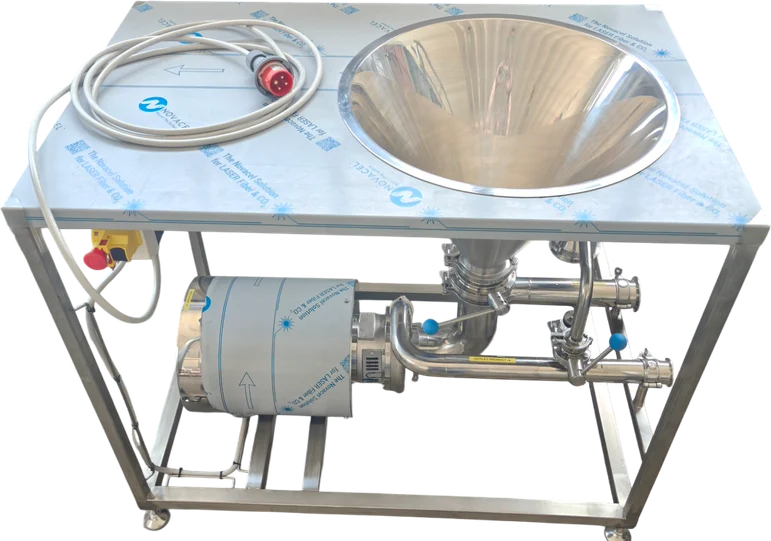

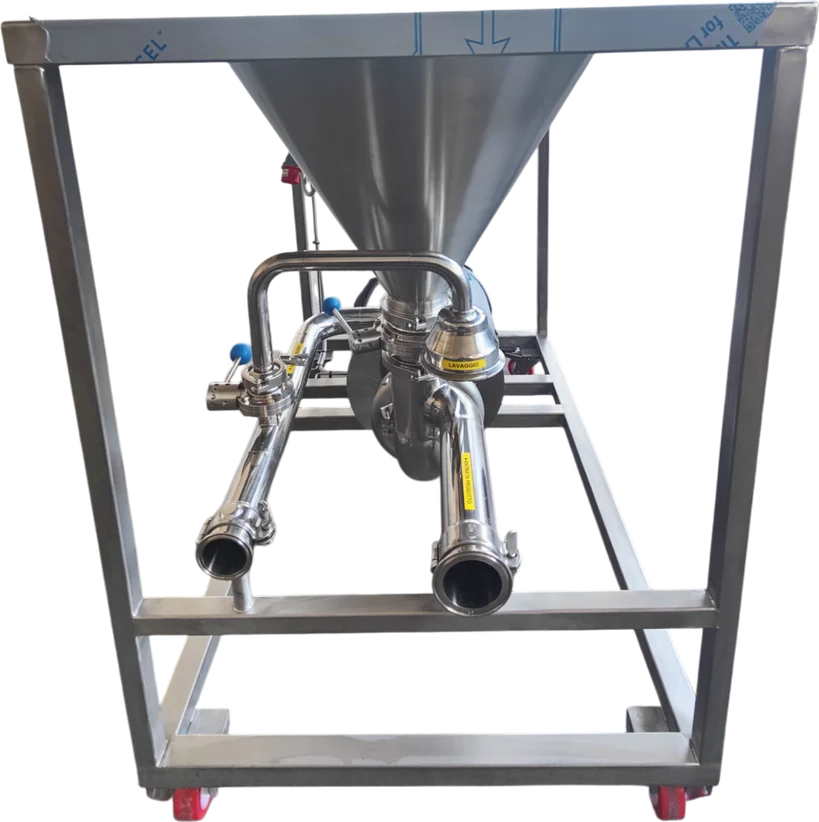

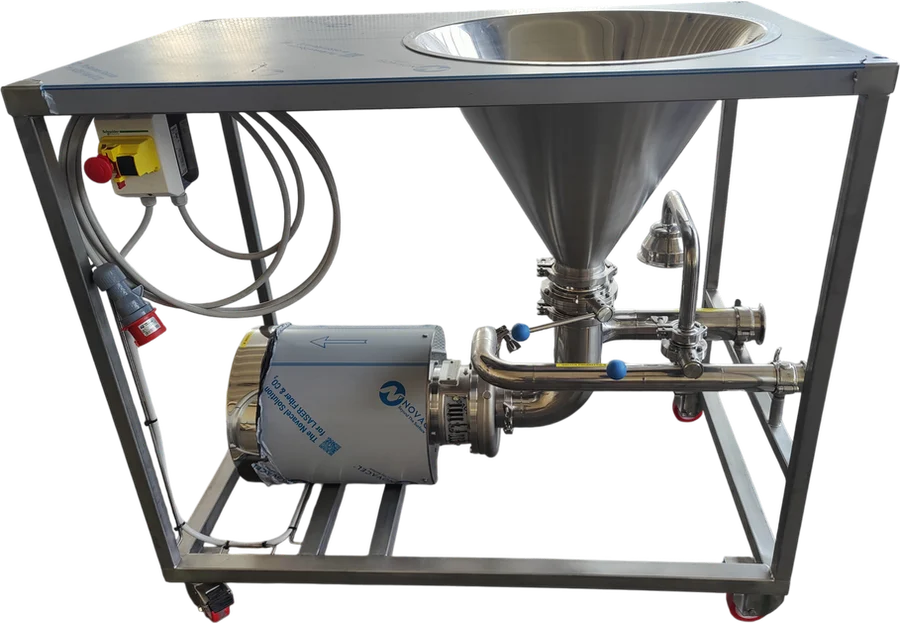

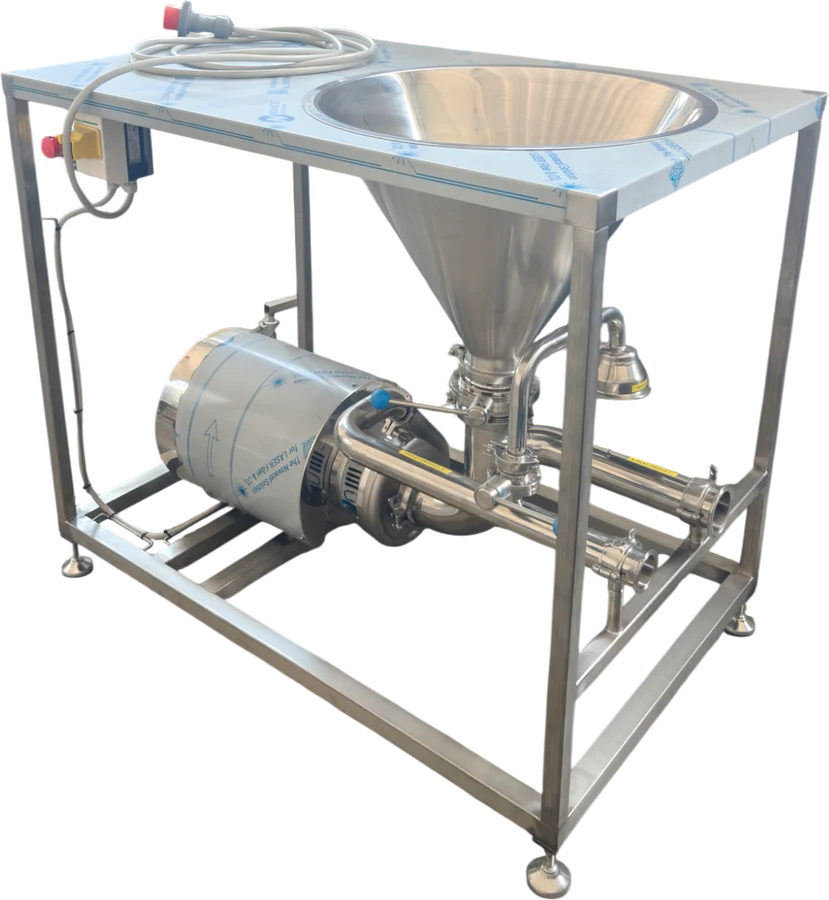

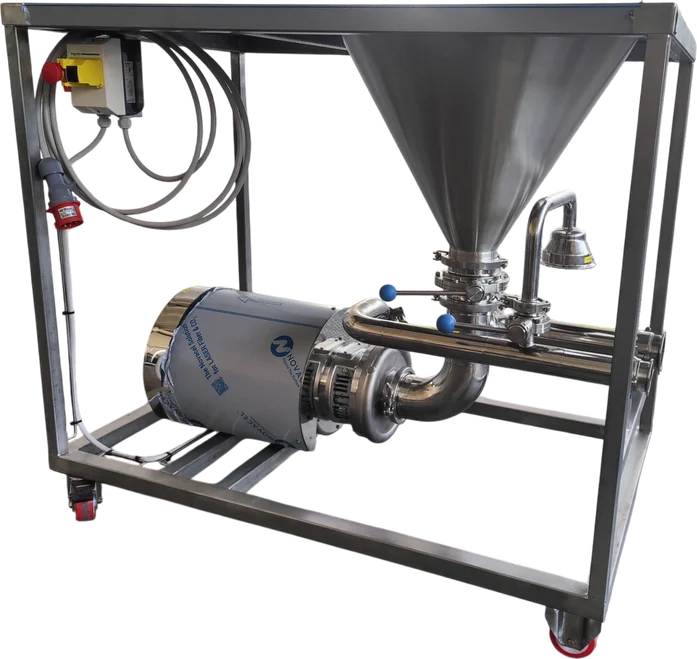

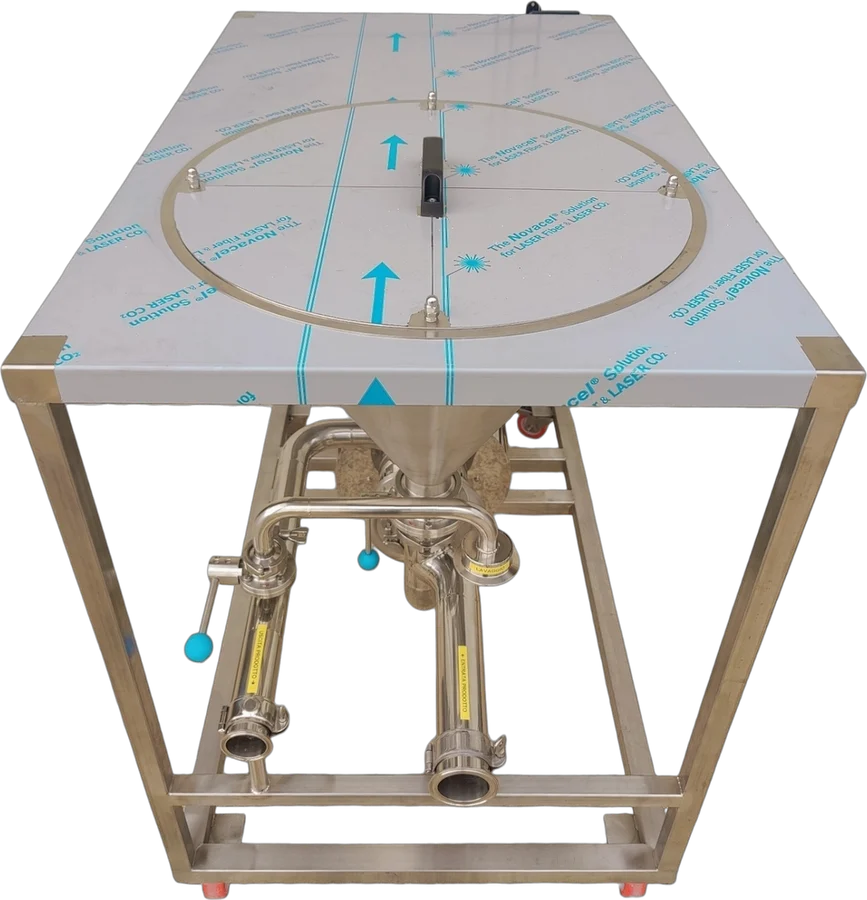

Details & components
Tap any image to enlarge.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Frequently asked questions
The answers we are asked most often. Not here? Write to us.
Which materials are in contact with the product?
AISI 316L on every product-contact part, with a polished finish for hygiene. The motor housing is AISI 316.
Which powders can it dissolve into liquid?
Sugar syrups, milk and whey powder, cocoa, starches, caseinates and similar — dissolved lump-free in a single pass.
Which hygienic connections can I have?
DIN 11851 as standard (Italy). On request Tri-Clamp, SMS, flanges and other hygienic connections, to match your existing plant.
Can it be cleaned in place (CIP)?
Yes — a wash bypass on the delivery side lets you run CIP without dismantling the unit.
Do you build them to measure?
Yes, each unit is built around your process, throughput and available space.
What certifications do you have?
CE marking and Made in Italy — designed and built entirely in our Thiene (VI) workshop.
Request a quote
Need this machine for your line?
Tell us about your process — we size and build it to measure, in stainless steel.
