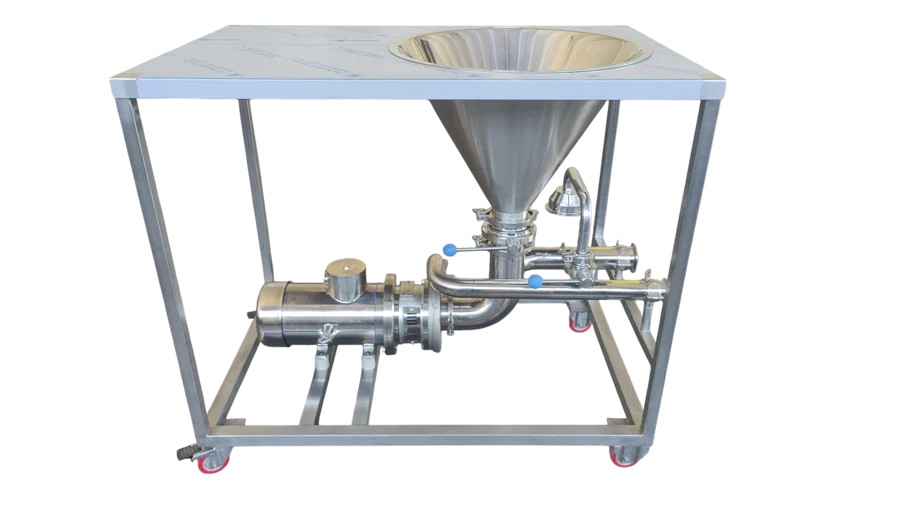

The FZ-TB triblender / powder dissolver with IP69-K motor delivers unrivalled dissolving efficiency together with maximum protection of the motor against water and dust.
Built in food-grade stainless steel with CIP/SIP cleaning, it can draw liquids directly from drums or containers by vacuum — no manual transfer, no supplementary feed pump.
The triblender is not suited to xanthan gum and other instantly hydrating thickeners: the solution thickens within seconds, turns into a non-Newtonian fluid and stops flowing through the pipes — the venturi system clogs and the machine is out of service until it is dismantled and washed. Thickeners of moderate viscosity remain well within the machine's working range. If you need to dissolve products of this kind, talk to us first: we will tell you straight away whether the triblender is right for the job.

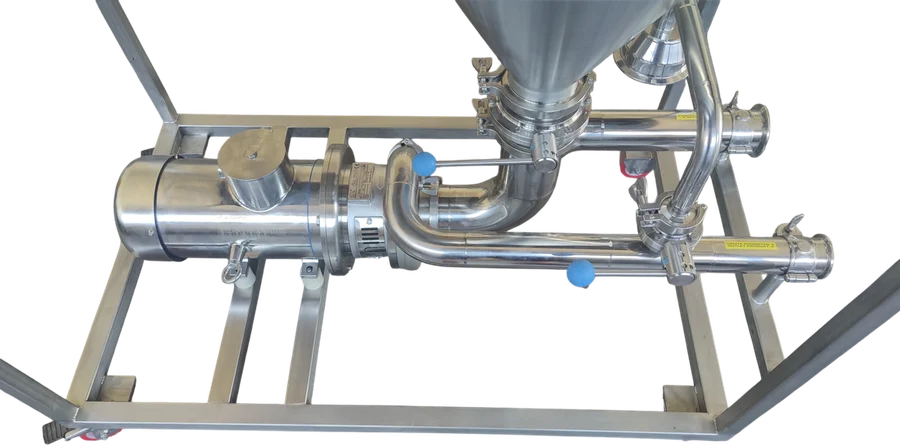

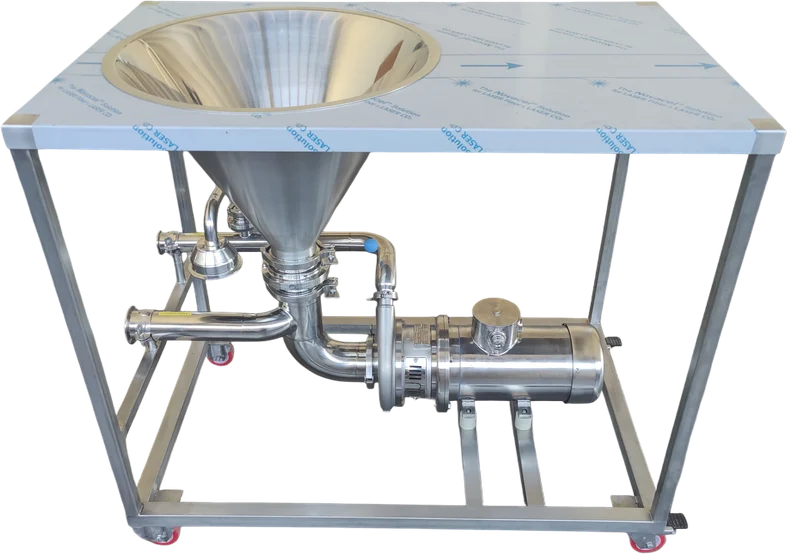

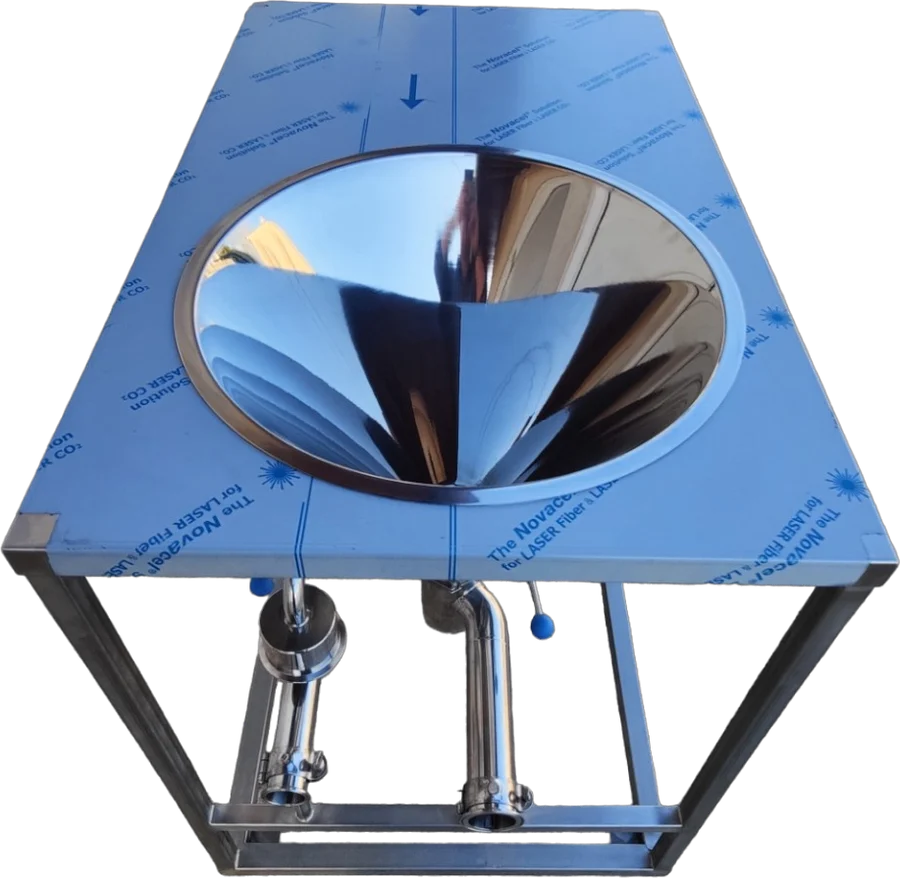

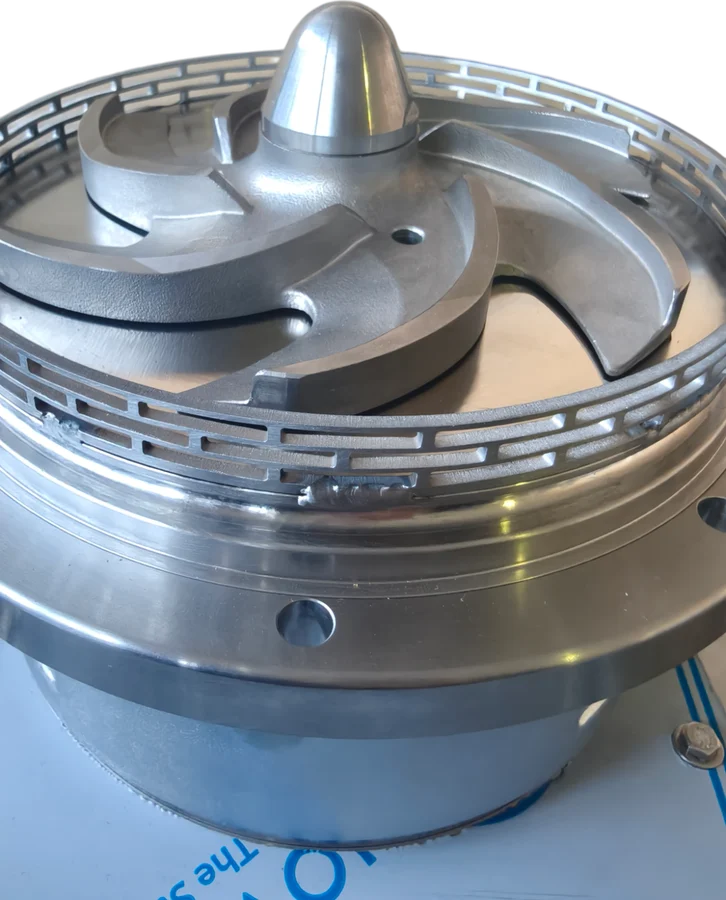

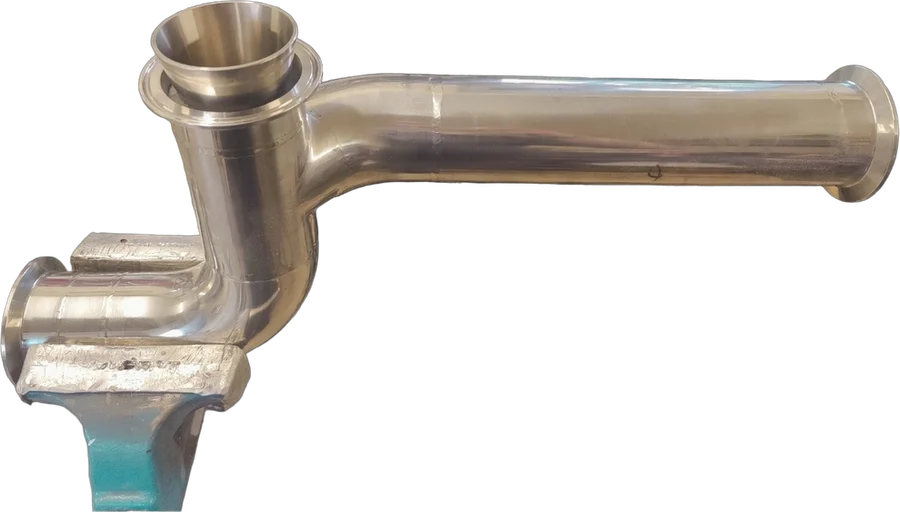

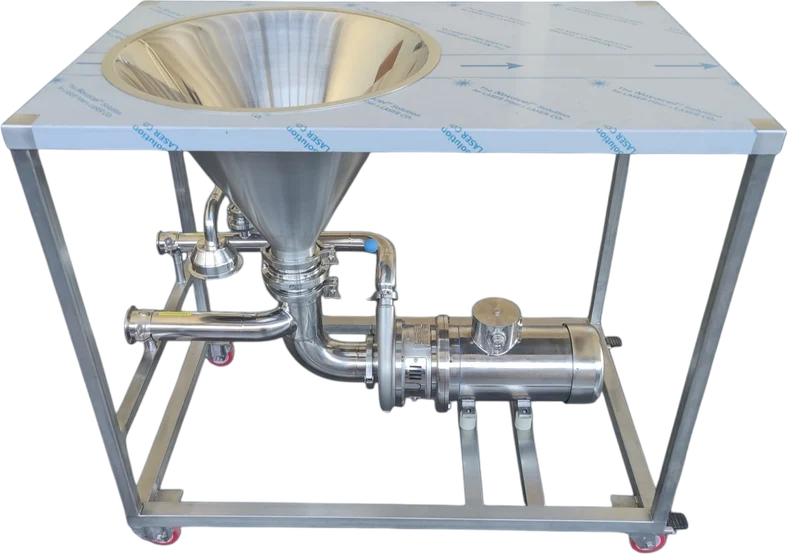

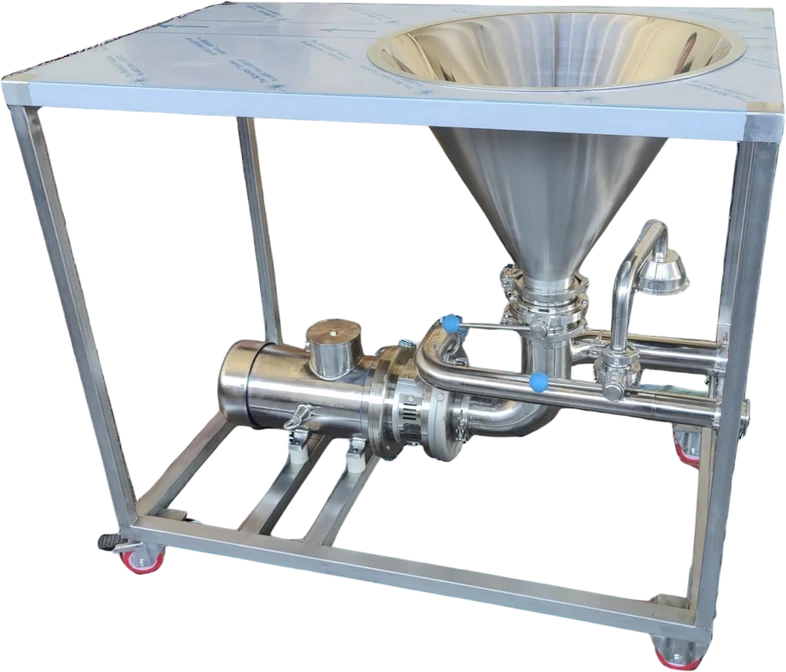

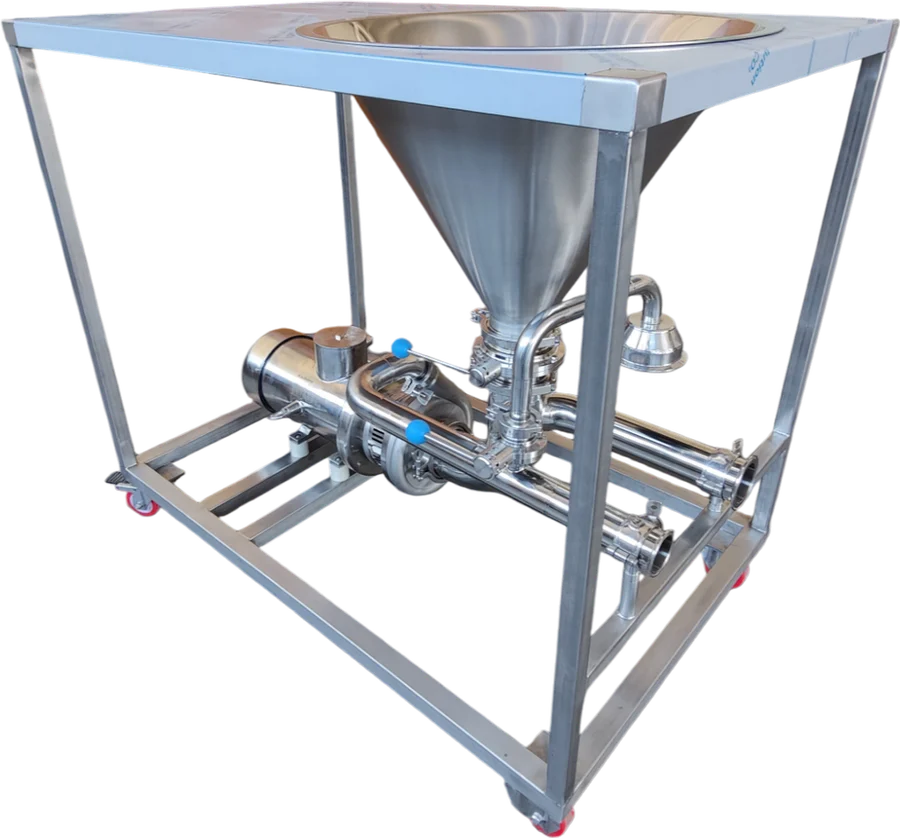

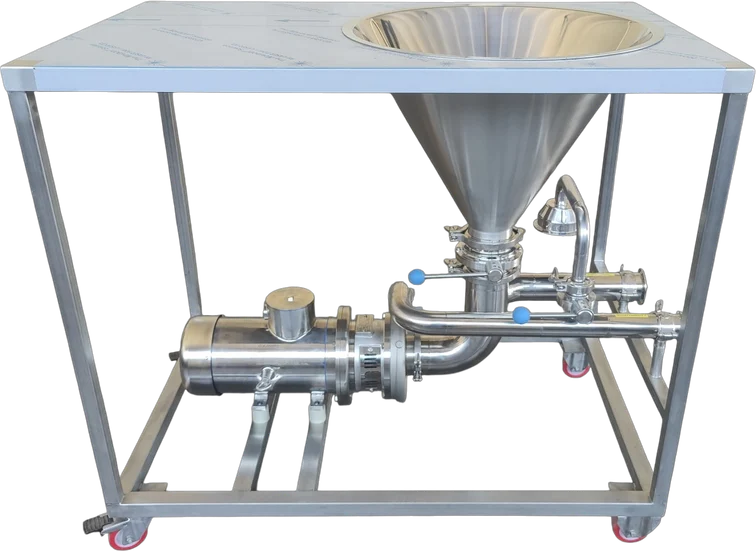

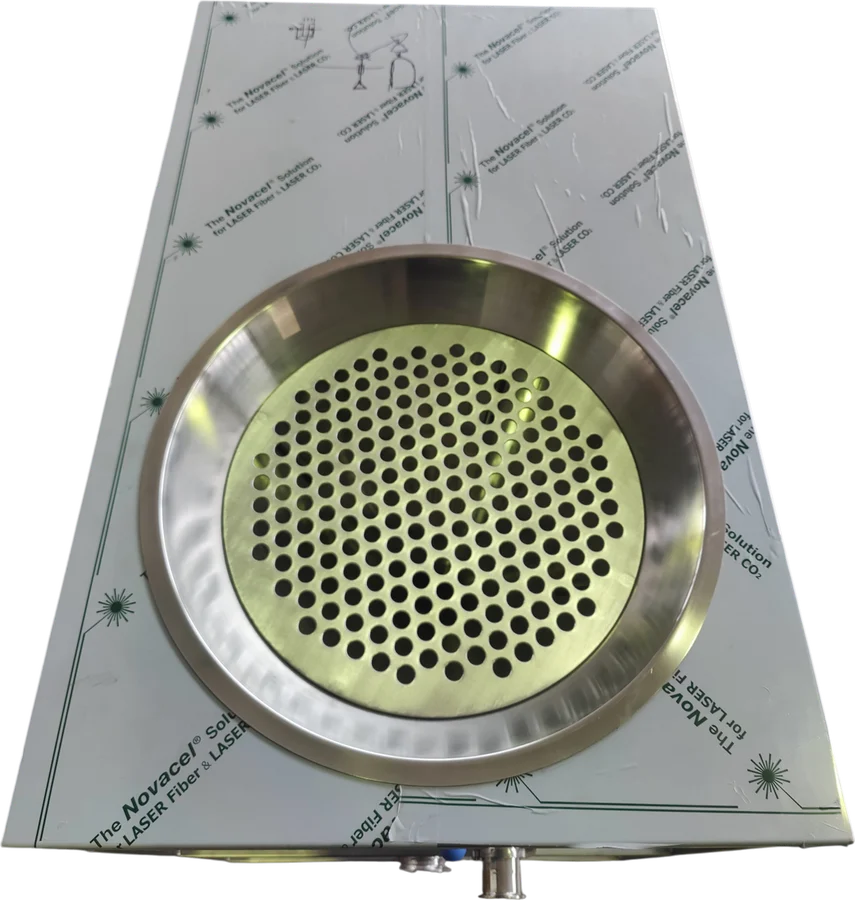

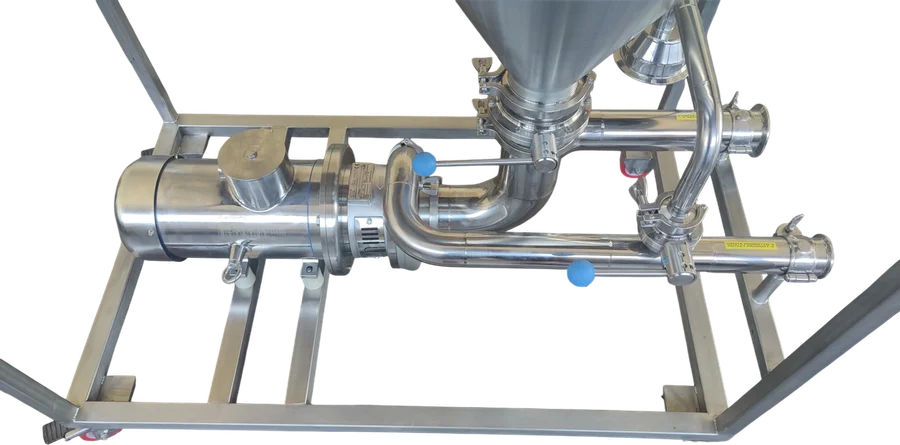

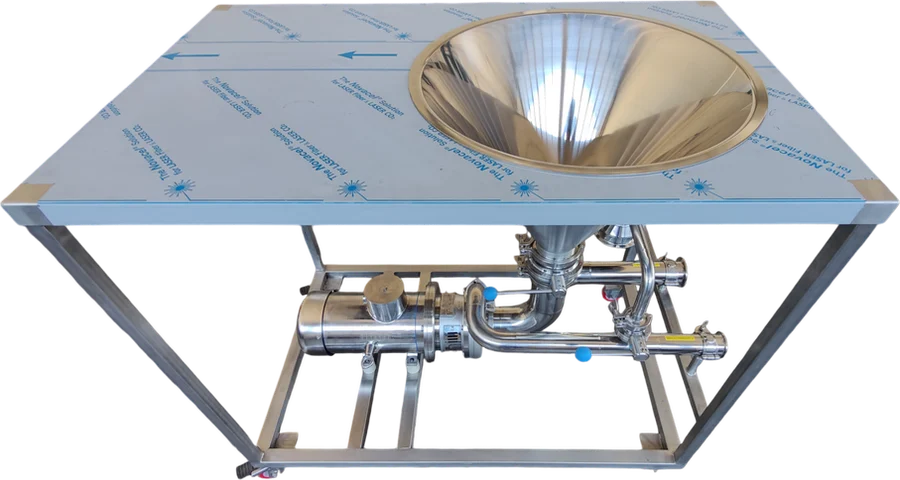

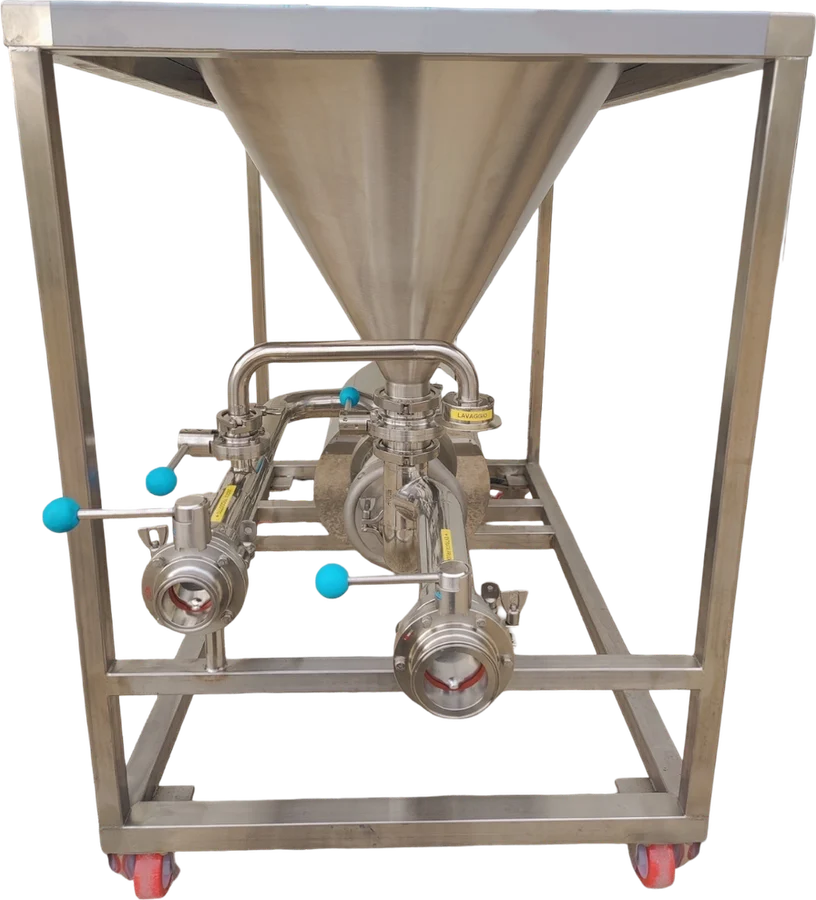

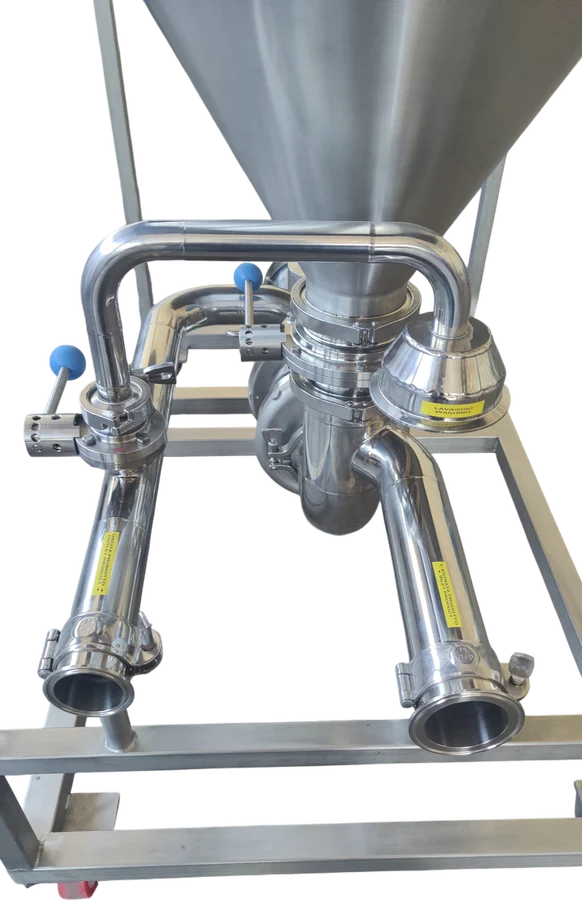

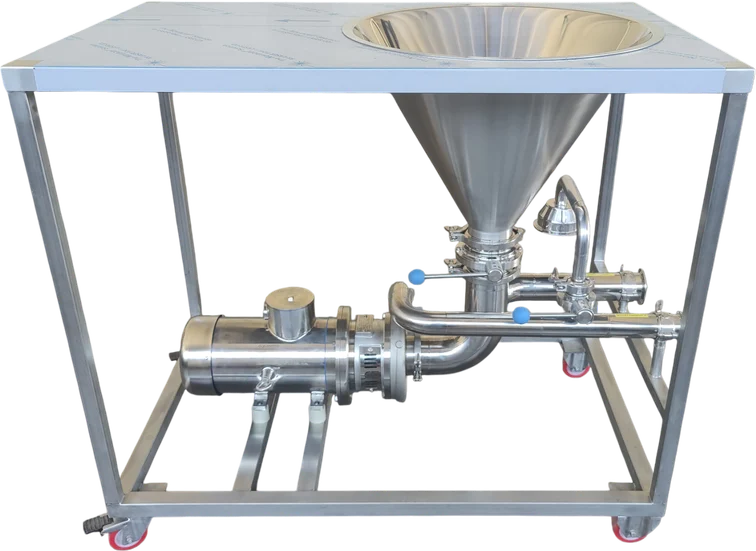

Details & components
Tap any image to enlarge.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Frequently asked questions
The answers we are asked most often. Not here? Write to us.
Which materials are in contact with the product?
AISI 316L on every product-contact part, with a polished finish for hygiene. The motor housing is AISI 316.
Which powders can it dissolve into liquid?
Sugar syrups, milk and whey powder, cocoa, starches, caseinates and similar — dissolved lump-free in a single pass.
Which hygienic connections can I have?
DIN 11851 as standard (Italy). On request Tri-Clamp, SMS, flanges and other hygienic connections, to match your existing plant.
Can it be cleaned in place (CIP)?
Yes — a wash bypass on the delivery side lets you run CIP without dismantling the unit.
Do you build them to measure?
Yes, each unit is built around your process, throughput and available space.
What does IP69-K protection mean?
It is the highest ingress rating: the motor withstands close-range, high-pressure and high-temperature water jets — made for washdown lines where the machine is hosed down daily.
What certifications do you have?
CE marking and Made in Italy — designed and built entirely in our Thiene (VI) workshop.
Request a quote
Need this machine for your line?
Tell us about your process — we size and build it to measure, in stainless steel.
