Products / FZ-SP Self-priming pump
FZ-SP · Food-grade stainless steel
Self-priming pump
Reliable suction, even from below.
Our FZ-SP self-priming pump is built in stainless steel for the food industry and for milk transfer. Thanks to its self-priming capability, it draws liquids even from below its own level and automatically resumes operation after an interruption — with no manual intervention.
Hygienic, robust and reliable, it is ideal for foaming liquids and for transferring product between tanks and containers. Its modular design simplifies maintenance and keeps running costs low.
Made in Italy, it combines proven engineering with high energy efficiency to support demanding food, beverage and dairy processes.
Technical guideCentrifugal or self-priming: which you need
Technical specifications
Built to measure — every unit is sized to your duty point.
Construction
Stainless steel — AISI 316L on all product-contact parts
Motor power
3.0 kW (FZ-SP30) · 4.0 kW (FZ-SP40)
Speed
≈ 1450 rpm (4-pole) · impeller Ø192 mm
Coverage
Flow up to 24 m³/h · head up to 26 m
Motor protection
IP55 · IP69-K version available
Power supply
400 V · 3-phase · 50 Hz — 60 Hz coming soon
Hygienic connections
DIN 11851 standard (IT) — Tri-Clamp, SMS, flanges & other connections on request
Mechanical seal
Selected to suit your fluid and its operating temperature
Compliance
CE marked · Made in Italy
✓ AISI 316L on product-contact parts
✓ Polished finish for hygiene
💬 You talk to the people who build it
📦 We ship across Europe & beyond
Models & dimensions
By electric-motor output. FZ-SP30 and FZ-SP40 share the same overall dimensions. Indicative, not binding.
3.0 – 4.0 kW
- FZ-SP30 3.0 kW · up to 18 m³/h
- FZ-SP40 4.0 kW · up to 24 m³/h
Built under your name
The nameplate can be yours

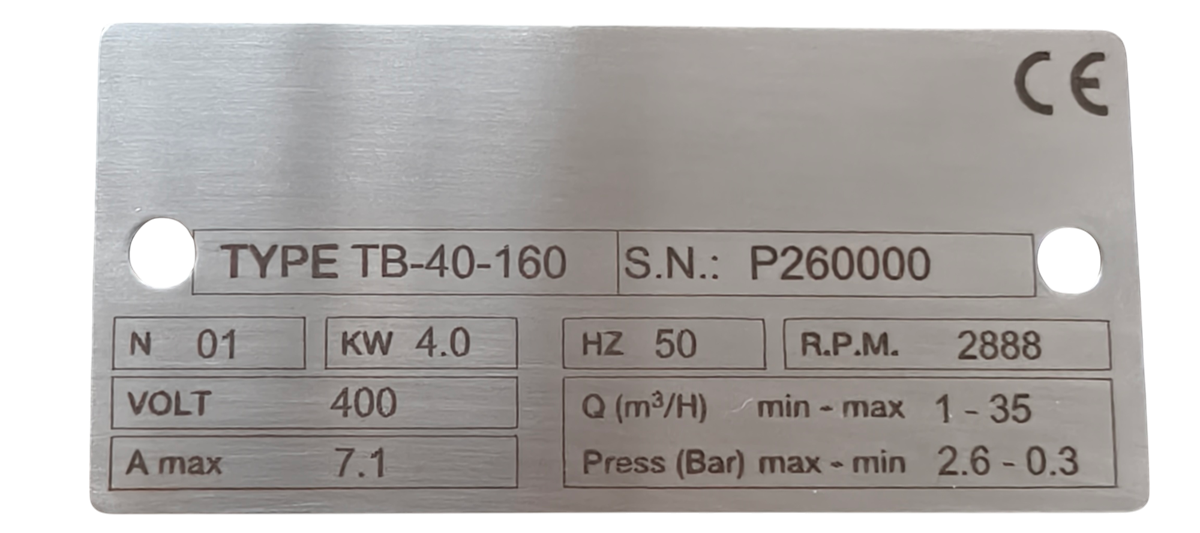

Every FZ-SP leaves the workshop with a stainless steel nameplate: model, serial number, power, speed, flow and pressure — readable for the whole life of the pump.
- Your logo and your addressOn request we engrave the nameplate with your own logo and address: the pump reaches the plant under your name.
- The curve of the pump you orderAsk us for the performance curve of your exact configuration: we send it with the quotation.
Performance curves
Interactive tool — flow up to 24 m³/h, head up to 26 m: browse the real H–Q curves and find the right model for your duty point.
Performance by model
Values at 50 Hz and 1450 rpm, read from the H–Q curves above: maximum flow and maximum head, that is at zero flow.
| Model | Power | Max flow | Max head |
|---|---|---|---|
| FZ-SP30 | 3 kW | 18 m³/h | 18 m |
| FZ-SP40 | 4 kW | 24 m³/h | 26 m |
Hygienic connections
Every unit is fitted with the coupling your line uses. DIN 11851 is our standard — the rest are available on request, so the pump drops straight into your existing plant.
Standard
DIN 11851
Threaded hygienic union — the food-industry standard in Italy and much of the EU.
On request
Tri-Clamp
Clamp connection with quick release — fast to open for inspection and cleaning.
On request
SMS 3008
Swedish dairy union — common on international dairy and beverage lines.
On request
Flange & others
Bolted flanges, IDF/RJT, and other hygienic couplings to match your plant.
Your standard?
Tell us which standard your line uses — we build the pump to match.

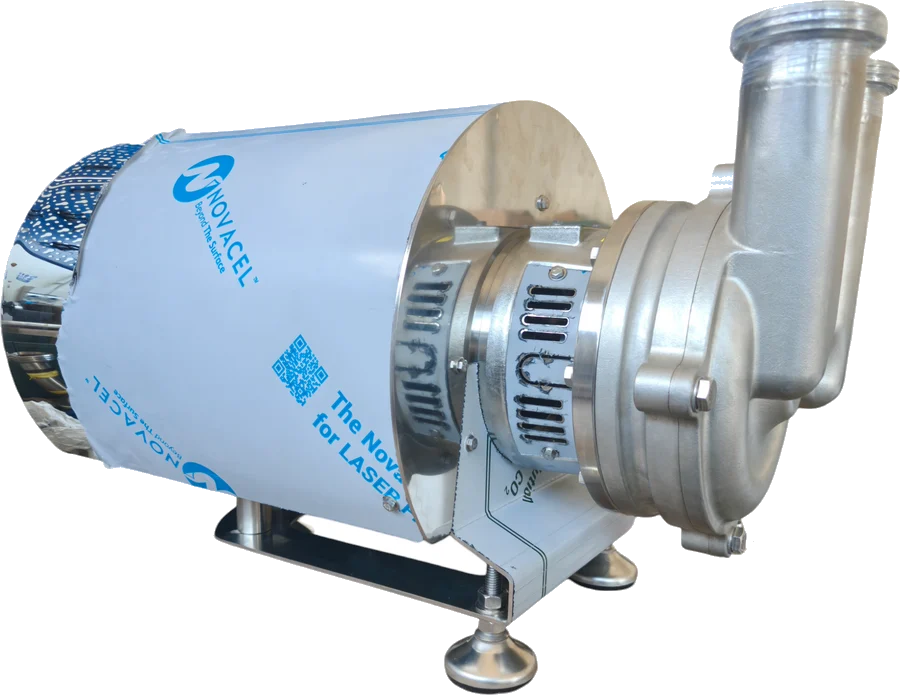

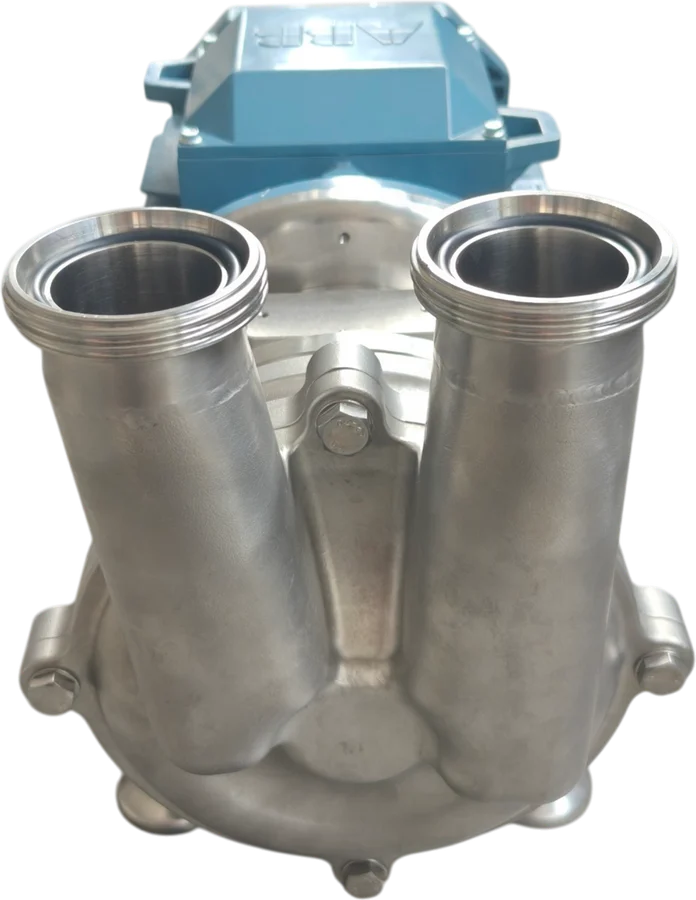

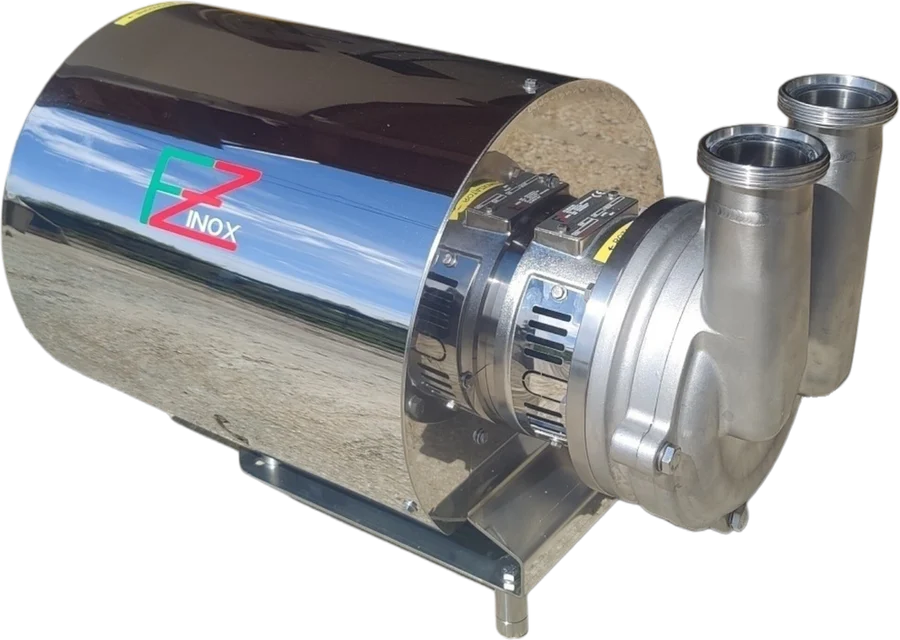

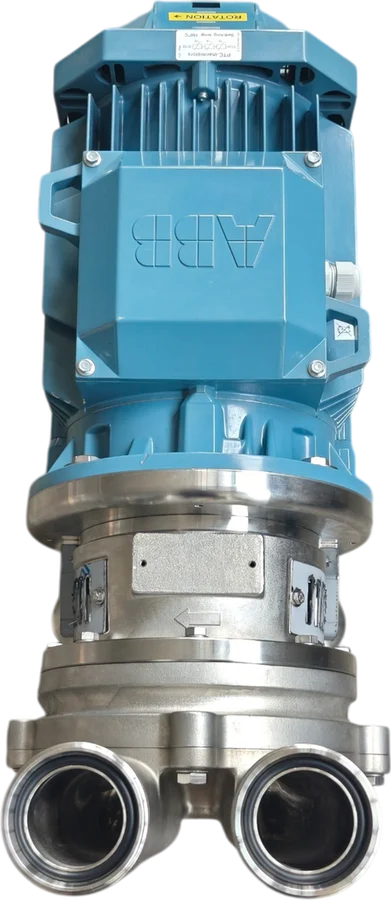

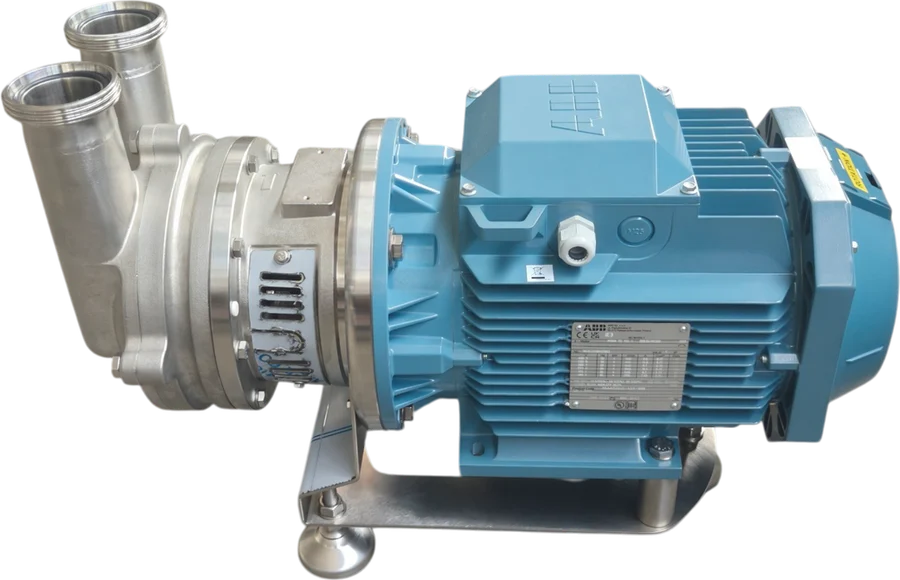

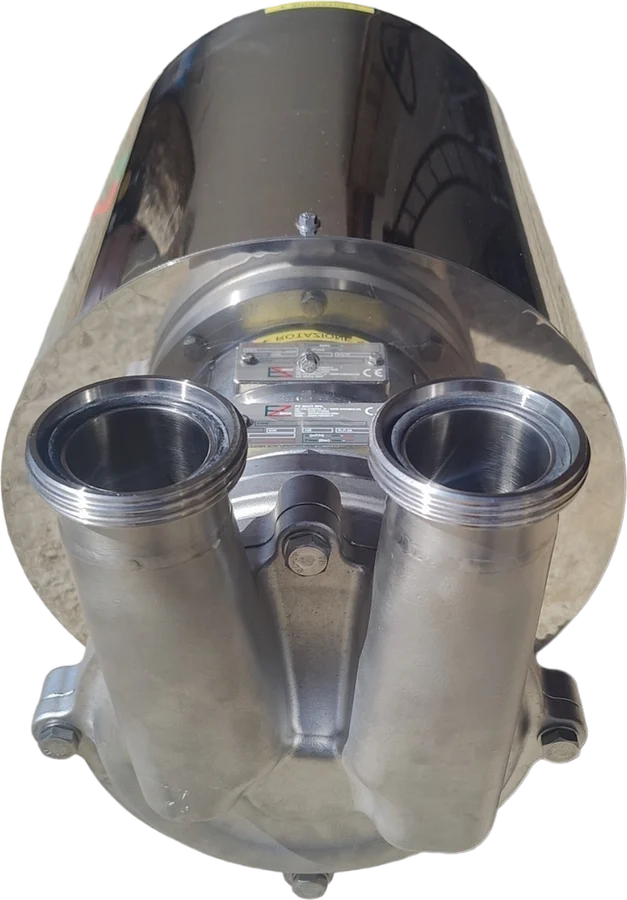

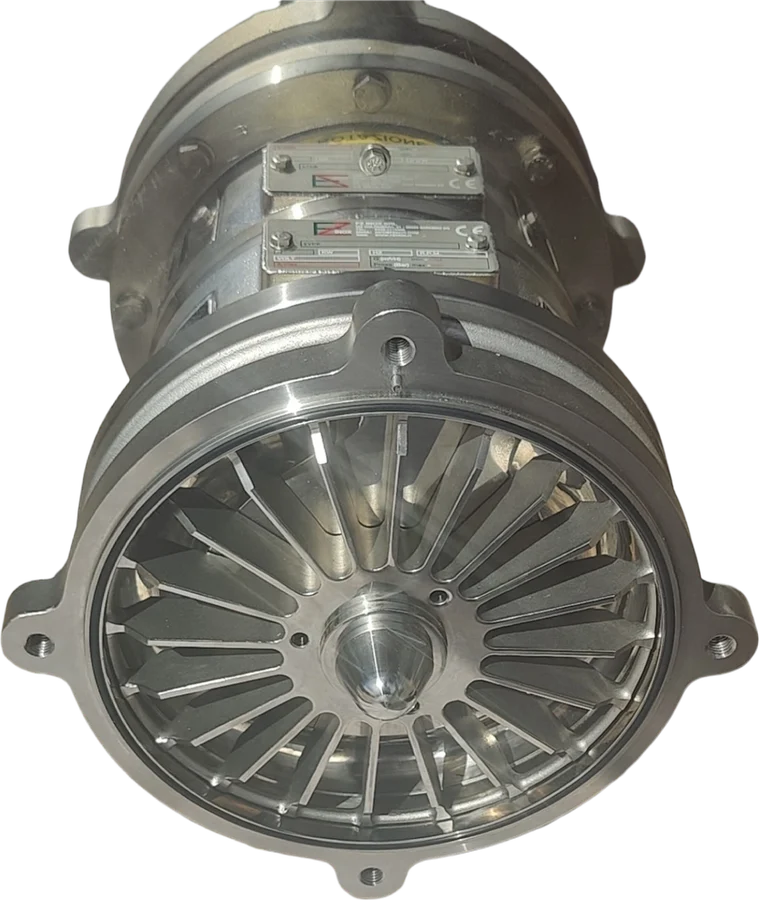

Details & components
Tap any image to enlarge.
1
2
3
4
5
6
7
Frequently asked questions
The answers we are asked most often. Not here? Write to us.
Are the FZ-SP pumps available at 60 Hz?
The FZ-SP range is published at 50 Hz (≈1450 rpm). The 60 Hz test campaign is in preparation — for 60 Hz export duties, contact us and we will size the right unit.
Which materials are in contact with the product?
AISI 316L on every product-contact part, with a polished finish for hygiene. The motor housing is AISI 316.
Which mechanical seal do you fit?
The mechanical seal is selected to suit your fluid and its operating temperature — it is not a fixed choice, we define it together with you.
Which hygienic connections can I have?
DIN 11851 as standard (Italy). On request Tri-Clamp, SMS, flanges and other hygienic connections, to match your existing plant.
Is there a washdown version for high-pressure cleaning?
Yes — the IP69-K version, with a motor rated for high-pressure and high-temperature washdown environments.
Do you build pumps to measure?
Yes. Every unit is sized on your duty point — flow and head — send us your data and we build it around it.
What certifications do you have?
CE marking and Made in Italy — designed and built entirely in our Thiene (VI) workshop.
