Products / FZ-CP VERT Vertical centrifugal pump
FZ-CP VERT · Food-grade stainless steel
Vertical centrifugal pump
All the flow, half the footprint.
The FZ-CP VERT vertical centrifugal pump is designed for a minimum footprint and maximum efficiency. Installed vertically, it is ideal for tight spaces and applications that demand high performance.
With the motor positioned at the top, it stays protected even if the mechanical seal develops a sudden leak, and its configuration lets the suction port rotate through 360° for flexible installation. Built in stainless steel — hygienic, durable and easy to clean.
Made in Italy for the food, beverage and dairy industries.
Technical guideHow to read the curve and choose the pump
Technical specifications
Vertical, space-saving version of the FZ-CP centrifugal pump.
Construction
Stainless steel — AISI 316L on all product-contact parts
Layout
Vertical — minimal footprint
Range
1.1 – 7.5 kW · 7 power classes
Coverage
Flow up to 45.6 m³/h · head up to 42.8 m
Motor protection
IP55 · IP69-K version available
Power supply
400 V · 3-phase · 50 Hz / 60 Hz
Hygienic connections
DIN 11851 standard (IT) — Tri-Clamp, SMS, flanges & other connections on request
Mechanical seal
Selected to suit your fluid and its operating temperature
Impeller
Open, without front shroud
Gaskets
EPDM
Compliance
CE marked · Made in Italy
✓ AISI 316L on product-contact parts
✓ Polished finish for hygiene
💬 You talk to the people who build it
📦 We ship across Europe & beyond
Models & dimensions
Indicative dimensions, not binding.
1.1 – 2.2 kW
- FZ-CP11 VERT 1.1 kW
- FZ-CP15 VERT 1.5 kW
- FZ-CP22 VERT 2.2 kW
3.0 – 7.5 kW
- FZ-CP30 VERT 3.0 kW
- FZ-CP40 VERT 4.0 kW
- FZ-CP55 VERT 5.5 kW
- FZ-CP75 VERT 7.5 kW
Coming soon
Dimensional drawings in preparation
Built under your name
The nameplate can be yours
Every FZ-CP leaves the workshop with a stainless steel nameplate: model, serial number, power, speed, flow and pressure — readable for the whole life of the pump.
- Your logo and your addressOn request we engrave the nameplate with your own logo and address: the pump reaches the plant under your name.
- The curve of the pump you orderAsk us for the performance curve of your exact configuration — here is a sample sheet.👁 View the sample curve
Performance curves
Interactive tool — flow over 45 m³/h, pressure over 45 m: browse the real H–Q curves and find the right model for your duty point.
Performance by model
Values at 50 Hz and 2900 rpm, read from the H–Q curves above: maximum flow and maximum head, that is at zero flow.
| Model | Power | Impellers Ø | Max flow | Max head |
|---|---|---|---|---|
| FZ-CP11 VERT | 1.1 kW | 105–145 mm | 17.1 m³/h | 23.8 m |
| FZ-CP15 VERT | 1.5 kW | 115–160 mm | 23.8 m³/h | 30.4 m |
| FZ-CP22 VERT | 2.2 kW | 130–175 mm | 33.3 m³/h | 36.1 m |
| FZ-CP30 VERT | 3 kW | 135–180 mm | 38 m³/h | 40.9 m |
| FZ-CP40 VERT | 4 kW | 155–180 mm | 38 m³/h | 42.8 m |
| FZ-CP55 VERT | 5.5 kW | 170–180 mm | 45.6 m³/h | 42.8 m |
| FZ-CP75 VERT | 7.5 kW | 180 mm | 45.6 m³/h | 42.8 m |
Hygienic connections
Every unit is fitted with the coupling your line uses. DIN 11851 is our standard — the rest are available on request, so the pump drops straight into your existing plant.
Standard
DIN 11851
Threaded hygienic union — the food-industry standard in Italy and much of the EU.
On request
Tri-Clamp
Clamp connection with quick release — fast to open for inspection and cleaning.
On request
SMS 3008
Swedish dairy union — common on international dairy and beverage lines.
On request
Flange & others
Bolted flanges, IDF/RJT, and other hygienic couplings to match your plant.
Your standard?
Tell us which standard your line uses — we build the pump to match.

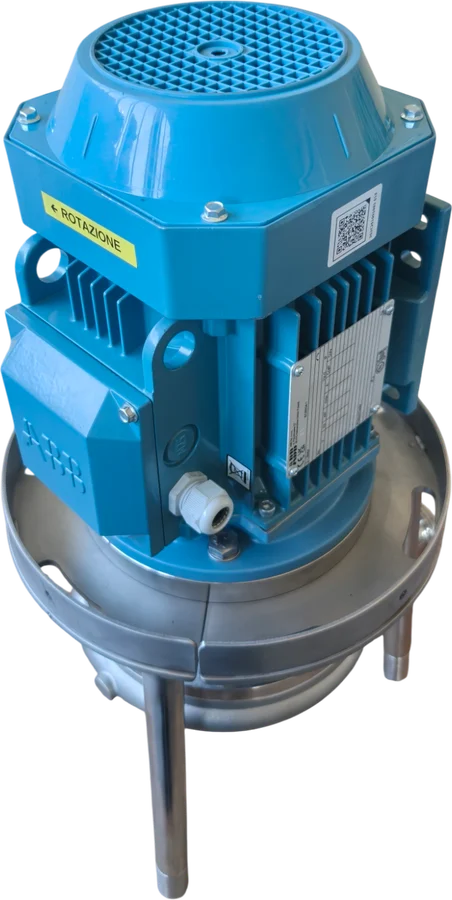

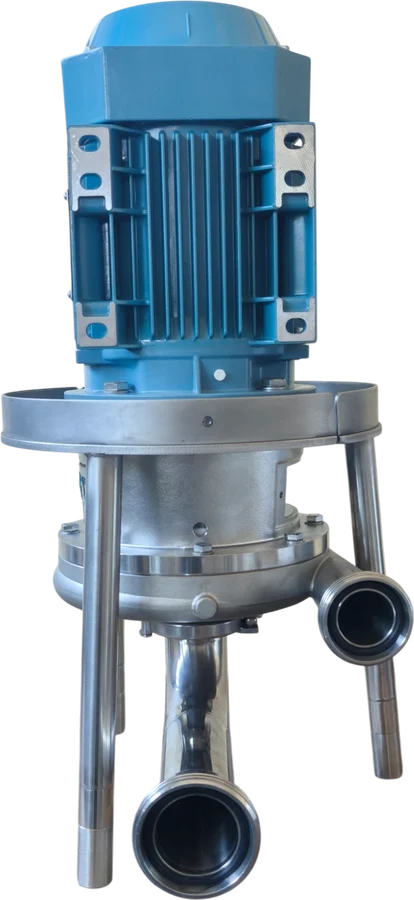

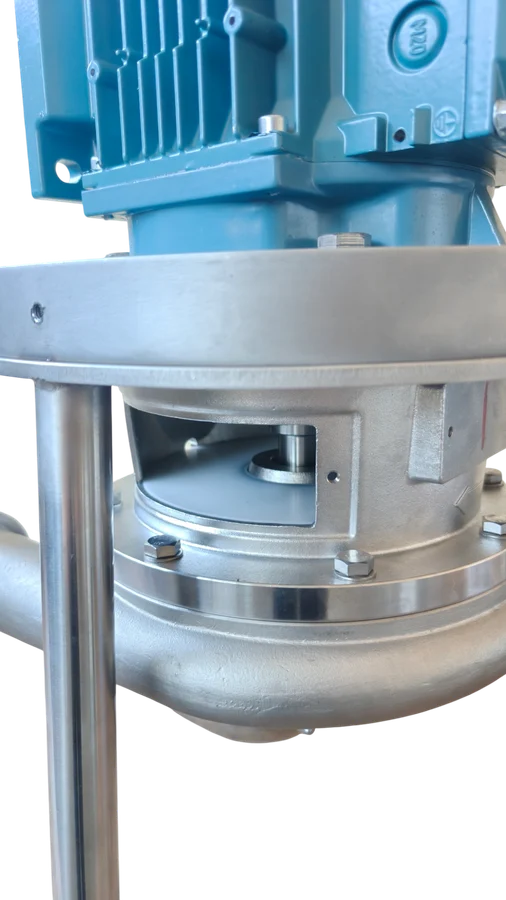

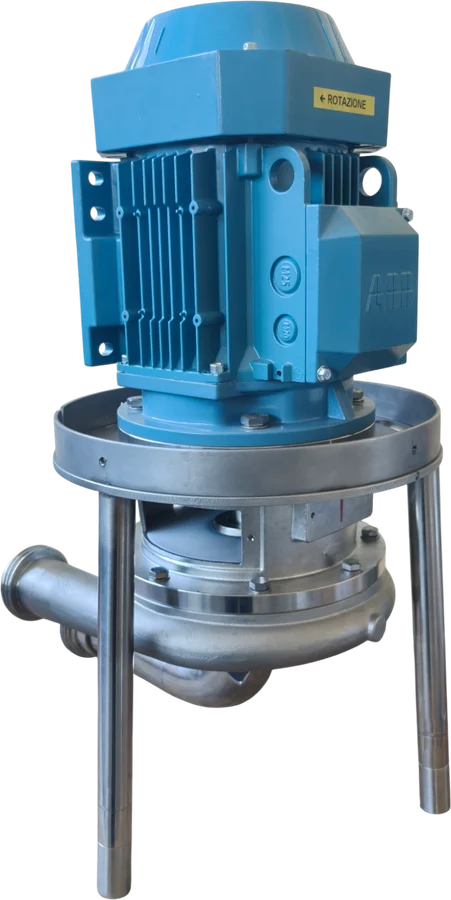

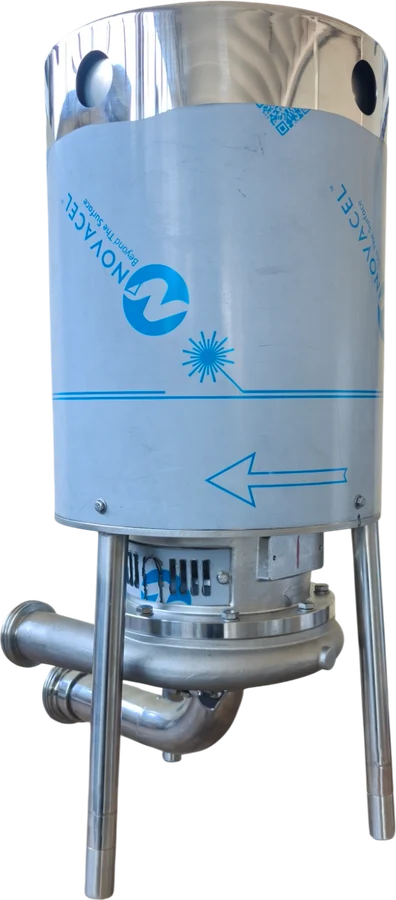

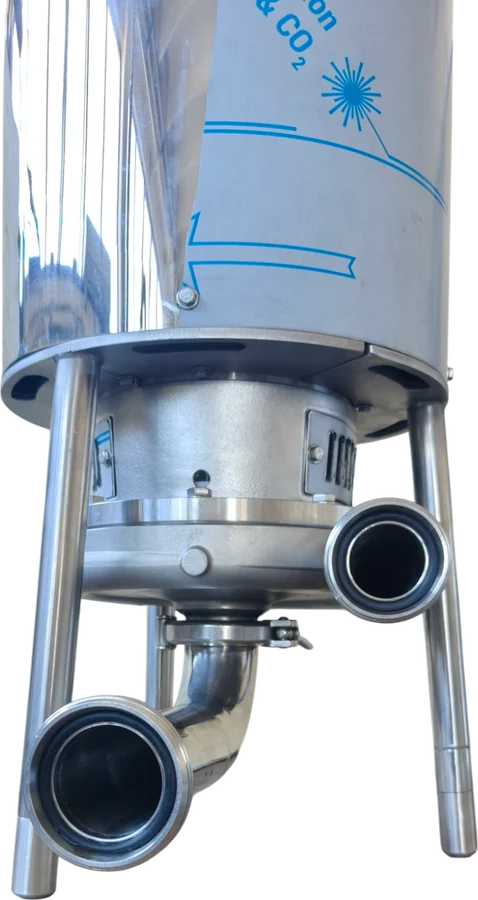

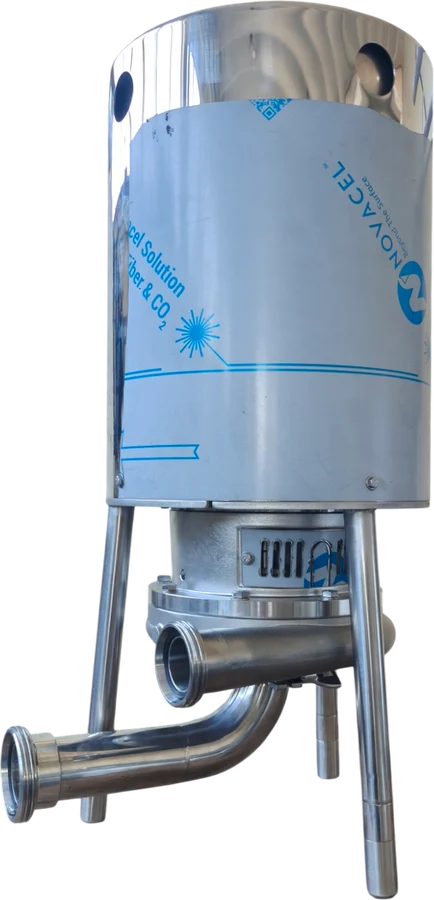

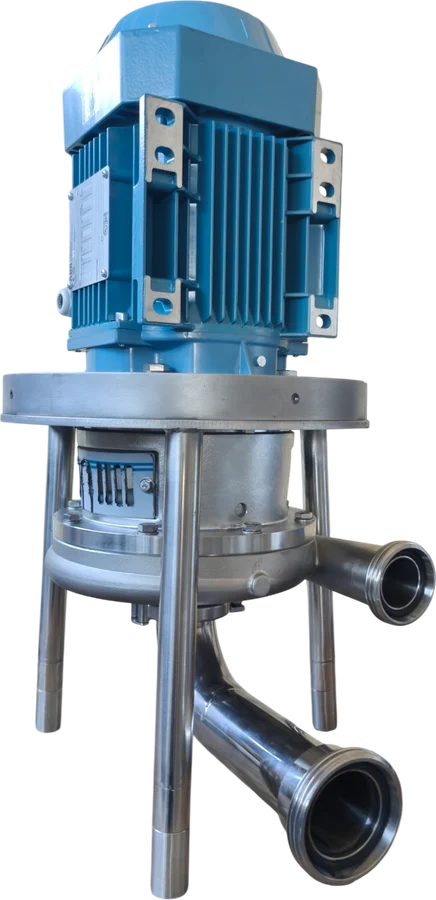

Details & components
Tap any image to enlarge.
1
2
3
4
5
6
7
8
Frequently asked questions
The answers we are asked most often. Not here? Write to us.
Are the FZ-CP pumps available at 60 Hz?
Yes. The whole FZ-CP range is tested and curved at both 50 Hz (2900 rpm) and 60 Hz (3500 rpm) — you will find both in the performance-curve tool, under the "50 vs 60 Hz" tab.
Which materials are in contact with the product?
AISI 316L on every product-contact part, with a polished finish for hygiene. The motor housing is AISI 316. Gaskets are EPDM.
Which mechanical seal do you fit?
The mechanical seal is selected to suit your fluid and its operating temperature — it is not a fixed choice, we define it together with you.
Which impeller does it use?
An open impeller: the vanes have no front shroud, so the passages stay wide, liquids with fine solid particles go through without clogging, and the pump is easy to clean and inspect.
Which hygienic connections can I have?
DIN 11851 as standard (Italy). On request Tri-Clamp, SMS, flanges and other hygienic connections, to match your existing plant.
Is there a washdown version for high-pressure cleaning?
Yes — the IP69-K version, with a motor rated for high-pressure and high-temperature washdown environments.
Do you build pumps to measure?
Yes. Every unit is sized on your duty point — flow and head — send us your data and we build it around it.
What certifications do you have?
CE marking and Made in Italy — designed and built entirely in our Thiene (VI) workshop.
